ship pump / transfer / engine cooling / ballast
DSL

Add to MyNauticExpo favorites
Compare this product
ship pump / transfer / engine cooling / ballast ship pump / transfer / engine cooling / ballast - DSL
{{requestButtons}}

Characteristics

  • Application domain:

    for ships

  • Applications:

    transfer, engine cooling, ballast, suction

  • Fluid:

    water

  • Technology:

    centrifugal

  • Operation:

    electric

  • Flow rate:

    Max.: 5,000 m³/h (176,573.33 ft³/h)

    Min.: 250 m³/h (8,828.67 ft³/h)

Description

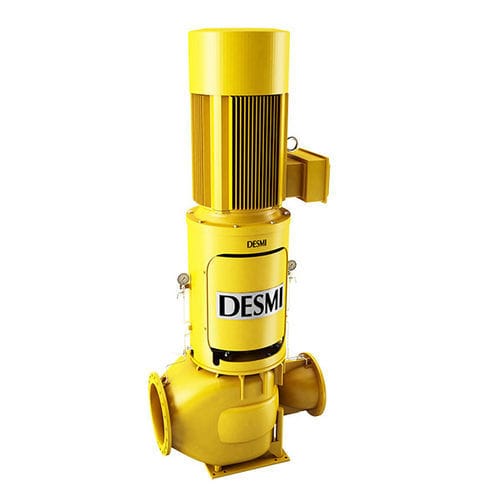

The in-line DSL double suction centrifugal pump
Up to 5400 m³/h (23800 US gpm)

The DSL pumps are single-stage, double-suction, vertical, centrifugal pumps. The design of the suction side provides for a perfect flow, and the inlet is placed in line with the outlet. Add to this the advanced double-suction impeller and the result is high efficiency and low NPSHvalues.The DSL series is widely used within different applications and markets.

Design Features
The pumps are fitted with bearings and mechanical shaft seal at both top and bottom. This gives a robust construction, designed for trouble-free continuous duty. The pumps are radially split. In spacer design, service including replacement of bearings and mechanical shaft seal can be carried out without removing motor and piping. Significant advantages to the benefit of the service personnel.
