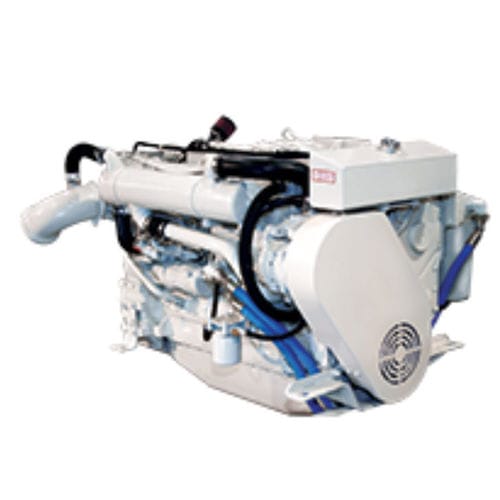

Inboard engine 6BT5.9
auxiliarydieselprofessional vessel

inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard, auxiliary
Power source
diesel
Market
professional vessel, for ships
Technology
turbocharged, direct fuel injection
Engine type
in-line
Pollution control standard
Tier 1
Other characteristics
4-stroke
Power

Max.: 150 ch
(150 hp)

Min.: 104 ch
(104 hp)

Displacement

6 l
(2 gal)

Number of cylinders

6 unit

Engine speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Bore

102 mm
(4 in)

Stroke

120 mm
(4.7 in)

Length

1,020 mm
(40 in)

Width

601 mm
(24 in)

Height

1,201 mm
(47 in)

Weight

426 kg
(939 lb)

Description

Proven legacy in tough commercial marine environments, hard earned over the last 25 years Ideal solution for emergency or ship service power, power units, fire pumps and hydraulic units Covered by a comprehensive one year warranty and backed by Cummins global service network Built at Darlington Engine Plant in Darlington, U.K. Engine Design: Robust engine block designed for continuous duty operation and long life. Single cylinder head with four valves per cylinder enhances performance Fuel System: Rotary fuel pump with optional electronic governor for precise fueling and engine speed Cooling System: Single loop keel cooling or engine mounted heat exchanger available for simplified installation. Optional fan drive for radiator applications Exhaust System: Water cooled exhaust manifold reduces emissions and cools engine surface temperatures Air System: Cummins turbocharger optimized for marine applications. Jacket water aftercooled Lubrication System: Standard capacity (14.2 L [3.8 g]) oil pan available with rear, front or center sump for installation flexibility. Spin on Cummins lube filters Certifications: Marine Classification Society approvals from IACS members and SOLAS compliant configurations available; check with your local Cummins professional for a current list of certifications available on this engine
