Battery charger YPOWER+

marinewith integrated circuit breakerwith load sharer

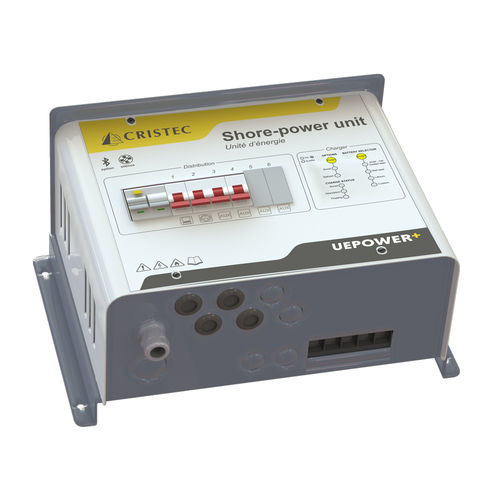

The new CRISTEC shore-power units combine, in a single cabinet, AC protection and distribution, as well as an automatic battery charger. The complete system meets the European standards in force and makes it possible to optimize size and assembly time. User protection consists of a two-pole differential RCD (Residual Current Device) and the distributions are made by 2 to 6 two-pole circuit breakers (Over Current Protection Device). The battery charger function is ensured by an HF switch-mode electronic board, stemming from the latest YPOWER+ battery charger. General characteristics Silent operating CRISTEC offers shore-power units with natural convection (without fan). This specificity gives them a completely silent operation and an optimized lifespan. Up to 4 independent outputs The shore-power units have either 3 or 4 independent charger outputs, including one dedicated to the engine battery. Worldwide use Automatic detection of power supply network, from 90 to 265VAC and from 47 to 65Hz. You do not have to care about the AC power grid and genset voltage. Easy to install Selection of the battery technology can be done via the front keypad or via bluetooth application or CAN-BUS communication (according to model). The chargers are fitted with a CAN-Bus and a Bluetooth interface as standard. Connection to an NMEA network is also available through an optional adaptor, refer to charger’s options page. 5-stage charging profile – Boost: charges batteries to 80% of full charge – Absorption: slowly completes remaining charge to 100% – Floating: maintains battery charge – Reboost: new automatic Boost phase if DC consumers and the state of batteries so require.
