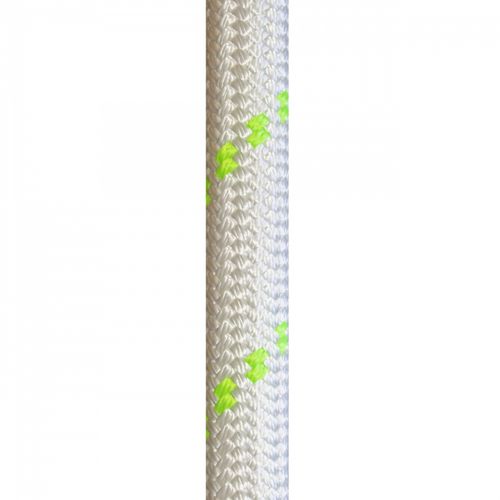

Mooring cordage SuperTowtowingdouble-braidfor ships
Add to favorites
Compare this product
Characteristics
- Type
- mooring, towing
- Structure
- double-braid
- Application domain
- for ships
- Core material
- polyester core
- Sheathing material
- polyester sheath
- Color
- multi-color
- Diameter
Max.: 112 mm
(4 in)Min.: 32 mm
(1 in)- Breaking load
Max.: 413,393 kg
(911,375.56 lb)Min.: 39,880 kg
(87,920.35 lb)- Elongation
Max.: 50 %
Min.: 3 %
Description
SUPERTOW was specially designed for Mooring and Towing applications. Made from HT polyester, its construction of multi parallel cores maximizes rope breaking strength whilst the compact braided protective cover, comprise of several double twisted yarns, enhances life span by adding to the rope excellent abrasion resistance properties. SUPERTOW is spliced with the new CS3 splice, developed in-house by our rigging department. This new technique maximizes rope LDBF (Line Design Breaking Force). Eyes are customized to customer needs and are always protected with coated Pro-Tech polyester and cordura covers. Cotesi D-Web protect cover, made from HMWPE, is also available on request.
Advantages
Excellent ratio between diameter, weigh and breaking load
Excellent abrasion resistance
Excellent UV resistance
Lower elongation
Lower operational costs
CS3 Splice
Technical Informations
Specific Gravity: 1,38 (sinks)
Melting Point: 265ºC
