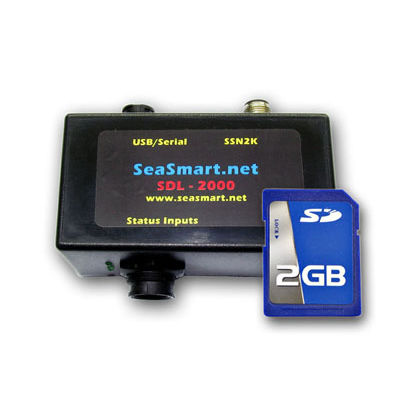

NMEA 2000™ Bus SD Data Logger

The NMEA 2000™ bus data logger with SD memory card and USB/Serial interface. Use SD to store more than a year of data. Includes a USB/Serial Gateway interface for compatible PC apps.

The SDL-2000 Gateway translates NMEA 2000 bus data to USB or Serial (RS232) format for use by PC/Laptop Applications and provides data logging to internal SD memory card.

Removable SD memory card can store up to 4 GB of NMEA 2000 bus data at up to 125 records/sec – more than a full years’ worth of traffic. Each record represents a complete NMEA 2000 PGN. Programmable data filtering and sample rates can obtain up to 10 years of storage on a single card.

Stored data from the SD memory card can be uploaded directly to the servers for cloud base storage and analysis or to the PC based PushSmartTM App for conversion into spreadsheet and graphing formats. No detailed knowledge of NMEA 2000 protocol is required to view and analyze bus data. provides preconfigured web pages for displaying data map overlays, graphs, charts, column data, and even virtual gauges.
