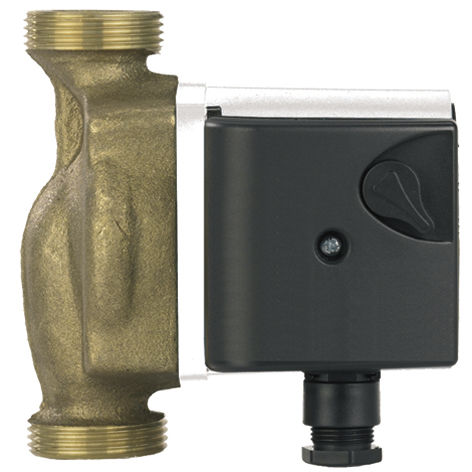

Boat pump CR series
circulationtoiletfor hot water

boat pump
boat pump
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Applications
circulation, toilet
Fluid
for hot water
Voltage
230 V
Flow rate

2.6 m³/h, 3 m³/h, 4 m³/h
(91.82 ft³/h, 105.94 ft³/h, 141.26 ft³/h)

Pressure

10 bar
(145 psi)

Weight

2.3 kg, 2.5 kg, 3.8 kg
(5.1 lb, 5.5 lb, 8.4 lb)

Description

Bronze pumps for sanitary hot water circulation with suction and delivery connections with the same diameter and on the same axis (in-line). The models CR 20 and CRZ 30 are made with screwed connection, the models CRZ 40 and CRZ 50 are made with flanged connections. The circulating pumps should be installed with horizontal shaft only. CONSTRUCTION FEATURES Body pump: BRONZE Motor: electric motor with 3 adjustable speeds by manual selector, 230V single-phase (M), 400V three-phase (T), 50Hz, protection IP44, Insulation class H, Continuous duty (S1), with thermal protection. SCOPE Static pressure inside the pump body: 10 bar max. Temperatura max. del liquido: 70 °C ACCESSORIES ON REQUEST Brass threaded union (for series CR 20 and CRZ 30) Brass counter flanges (for series CRZ 40, CRZ 50)
