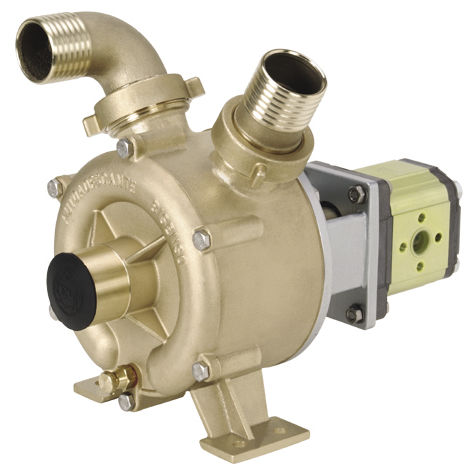

Boat pump MID 040

transferwateroil

Bidirectional self-priming pumps with side liquid ring, widely used in the nautical sector to empty bilges, fire-fighting, washing of decks and chains and transfer liquids such as: fresh water, sea water, gas-oil etc. Available with flange or complete with hydraulic motor. CONSTRUCTION FEATURES Pump body: BRONZE Impeller: BRONZE Pipe fittings: BRONZE Shaft : AISI 316 stainless steel Reversible mechanical seal: CERAMICS-GRAPHITE–NBR SCOPE Liquid free of solid impurities Temperature range of the liquid: from +0 to +70 °C. Max. suction depth: 6 m. ACCESSORIES ON REQUEST Abrasion-proof mechanical seals for high temperature made in VIDIA-VITON (max. 150°C)
