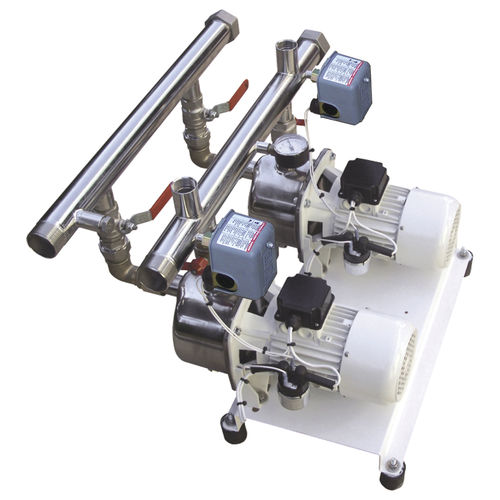

Boat pump GD-J / GD-MG
water pressure systemwaterelectric

boat pump
boat pump
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Applications
water pressure system
Fluid
water
Operation
electric
Voltage
24 V, 400 V, 230 V
Other characteristics
self-priming
Flow rate

50 l/min, 90 l/min
(13.21 us gal/min, 23.78 us gal/min)

Power consumption

28 A, 40 A

Pressure

6 bar
(87 psi)

Weight

25 kg, 26 kg, 30 kg, 37 kg, 40 kg
(55.1 lb, 57.3 lb, 66.1 lb, 81.6 lb, 88.2 lb)

Description

Water pressure systems composed of 2 self-priming electric pumps made of stainless steel type J-INOX or MG-INOX, or 2 self priming electric pumps made in bronze type JBR, widely used in the marine field to grant a proper and constant water pressure for all on board appliances such as: showers, kitchen, washbasins, toilets, etc. The use of our double water pressure systems series GD-J, GD-MG and GD-JBR allows for a higher water flow than the traditional pressure sets, as the two pumps made in d.c., a.c., or mixed ( d.c + a.c) can work either simultaneously or singularly. For a proper operation of the group it is recommended to install a water tank. COMPOSITION OF THE DOUBLE PRESSURE SYSTEMS Our double pressure group have a standard fitting of : No. 02 Self priming pumps type “J-INOX” , “MG-INOX” or “JBR” (voltages and performances as shown in the table) No. 04 Ball valves (No. 02 in the inlet, No. 02 in the outlet) No. 02 Non return valves in the inlet No. 02 Manual restarting pressure switch. No. 01 Pressure gauge. Manifolds made in stainless steel “Omega” base made in stainless steel with antivibration. SCOPE Liquid free of solid impurities Temperature range of the liquid: from +0 to +50 °C ( + 70°C for series GD-JBR)
