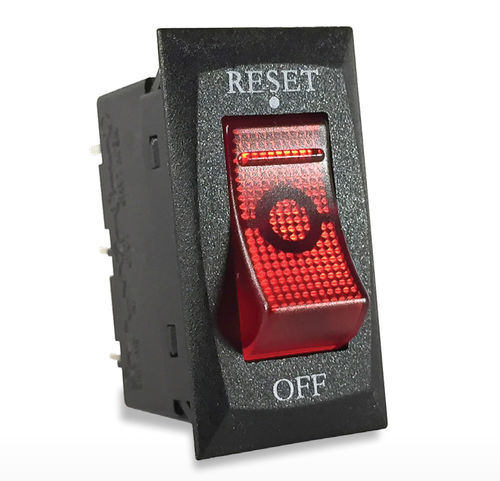

Boat circuit breaker C1005B

thermal

Designed for streamlined applications, the C1005B-Series offers a switch and circuit protector in one compact package. Created to fit an industry standard .550 x 1.125 mounting hole, the C1005B-Series makes for better use of valuable panel space and reduces wiring costs by eliminating the need for separate switch and circuit breaker. This single pole combination device offers both lighted and unlighted rocker actuators in multiple color choices with a standard Reset/Off legend imprint. Front panel snap-in mounting with a choice of .250 quick connect tabs or solder lug terminals complete the design of the combination device, making the C1005B-Series ideal for applications such as household and commercial appliances, power strips and supplies, generators, on/off-highway, marine, telecom, as well as audio-visual and medical equipment. Agency Approvals: UL 1077, UL 1363, cuL, TUV certified to IEC 60934 Amperage: Maximum 16 amps Voltage: 125/250VAC, 32VDC Amps Interrupting Capacity: 1,000 amps Specs Agency Approvals - UL 1077, UL 1363, cuL, TUV certified to IEC 60934 Number of Poles - 1 pole Maximum Current and Voltage Ratings - 7-16 amps @ 125-250VAC, 32VDC Amps Interrupting Capacity - 1,000 amps Available Circuits - Series Trip Illumination - Lighted, 125 or 250VAC Non-lighted Actuator Style - Rocker actuator Terminal Options - .250 Quick Connect Tabs Solder Lugs Mounting Method - Front Panel Snap-in
