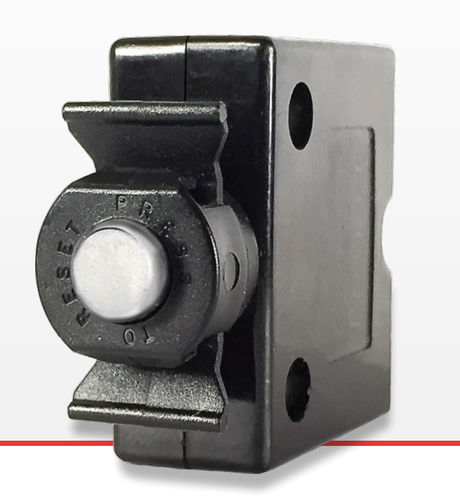

Boat circuit breaker CLB

thermal

Part of Carling’s push-to-reset family of thermal circuit breakers, the CLB-Series offers reliable protection in a compact package. Designed with minimal moving parts, the breaker delivers a cost-effective performance for multiple equipment types, added resistance against shock and vibration, and a consistent trip point over temperatures ranging from -10°C to +60°C. The CLB-Series also offers multiple hardware options, including indicator plates, plastic or metal hex or ring nuts, as well as clear and black hex boots. Terminal options include .250 QC tabs and screw with or without 90-degree bend or a combination. Given the breaker’s performance reliability and available options, it is ideally suited for a wide range of applications, including household appliances, power strips and supplies, on/off-highway, audio-visual and medical equipment. Additionally, it offers UL 1500 Ignition Protection for marine grade applications to reduce fire danger. These single pole breakers have plastic or metal bushing construction. Agency Approvals: UL 1077, cUL, UL 1500/ISO 8846 Ignition Protection (Marine), TUV, CE Amperage: Maximum 60 amps Voltage: 125/250VAC, 32VDC Amps Interrupting Capacity: 300 amps at 250VAC, 1000 amps at 125VAC and 2,500 amps at 32VDC Specs Agency Approvals - UL, cUL, UL 1500/ISO 8846 Ignition Protection (Marine), TUV, CE Number of Poles - 1 pole Maximum Current and Voltage Ratings - 3 - 60 amps @ 125-250VAC, 32VDC Amps Interrupting Capacity - 300 amps at 250VAC, 1000 amps at 125VAC and 2,500 amps at 32VDC Available Circuits - Series Trip Actuator Style - Push to reset button Terminal Options - .250 Quick Connect Tabs
