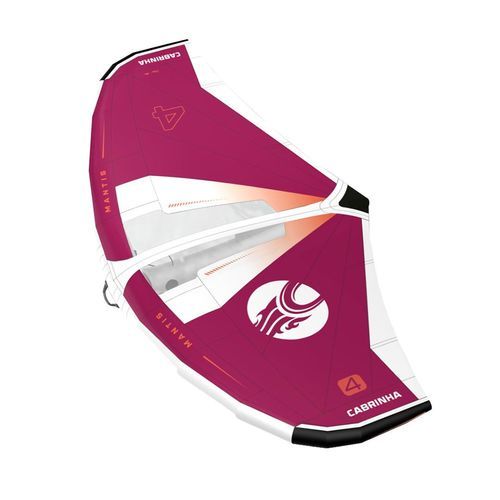

Hybrid inflatable air wing Mantis

waveallroundracing

Description
The Mantis has established itself as a benchmark wing in the market. The 2027 edition refines the elements that defined the model: improved aerodynamic profiles, optimized canopy tension and a revised radial load distribution panel layout. These changes increase balance, power delivery and efficiency across the wind range while retaining durable materials suited to regular maritime use.

Design Profile
Refined aerodynamics deliver predictable power, balance and control. The Mantis adopts a flatter canopy shaping and an optimized radial panel layout to better follow in-flight loads and improve balance and power transfer across sizes.

Features

• Internal tension improvements to optimize canopy tightness and performance
• New aerodynamic profiles reduce front-hand pressure
• Updated radial load distribution panel layout
• Teijin D2 canopy with Teijin 75 trailing edge panels
• 3-stage Hybrid LE construction (160gsm middle, 140gsm tip) increases stiffness and reduces weight
• Reinforced double center section for added strength and stiffness
• Rigid single boom front handle for improved control and handling
• Redesigned drop strut for better ergonomics and hand placement
• Optimized canopy tension for earlier planing and consistent power delivery
• TruView mesh infill panel for improved field of view
• Trailing edge battens integrated along the wing to optimize airflow and maintain profile
• Keylock angled handle attachments to index attachment points and eliminate boom rotation
• Cabrinha Airframe Inflation Valve: high-capacity, one-way twist-to-lock valve for fast, secure inflation

Who is this for?
The Mantis targets wingfoilers seeking an all-round performance wing suitable for flatwater, surf and aerial maneuvers. It is designed to provide balanced handling from the front handle, reliable behavior in surf, and significant big-air capability. Suitable for a wide skill range from beginner to advanced, and applicable for race-capable setups.

How it compares
Compared with the 2026 Vision, the Mantis has a notably flatter canopy, especially at the leading edge. The flatter profile requires slightly more input at the lightest wind end to initiate foiling, but once up it generates apparent wind and enables the Mantis' characteristic performance and strong upwind angles. The Mantis also features a lower-dihedral leading edge versus the Vision, which improves balance when ridden from the front handle and enhances surf and big-air performance.

Wind / Weight / Span Chart
Header: Size | 2m | 2.5m | 3m | 3.5m | 4m | 4.5m | 5m | 5.5m | 6m
Wind Range in Knots (75kg rider) | 25–45 | 20–40 | 17–36 | 16–34 | 15–30 | 13–27 | 11–26 | 9–24 | 7–20
Weight of Wing (kg) Without Bag (Tolerances may vary) | 1.90 | 2.05 | 2.20 | 2.40 | 2.60 | 2.75 | 2.95 | 3.10 | 3.35
Wing Span (m) | 2.32 | 2.57 | 2.79 | 2.96 | 3.13 | 3.28 | 3.46 | 3.59 | 3.72

Technical specifications

• Model: Mantis (2027 edition)
• Brand: Cabrinha
• SKU: K7WOMANTS-020001
• Available sizes: 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5m, 5.5m, 6m
• Canopy fabric: Teijin D2 double ripstop (made in Japan)
• Trailing edge panels: Teijin 75
• Leading edge: 3-stage Hybrid LE construction (160gsm middle, 140gsm tip)
• Internal construction: Updated radial panel layout to follow load lines
• Structural: Reinforced double center section; convex/convex strut for stiff reactive connection
• Handles / Boom: Rigid single boom front handle; Keylock angled handle attachments to index and lock boom
• Infill: TruView mesh infill panel for improved visibility
• Inflation: Cabrinha Airframe Inflation Valve, twist-to-lock one-way valve
• Trailing edge: Integrated aerodynamic battens to maintain profile and longevity
• Primary use cases: Freeride, surf, big-air, lightwind performance and race-capable
• Skill level: Beginner to Advanced (all-around performance)
• Colors / styles: C1, C2 (as offered)
