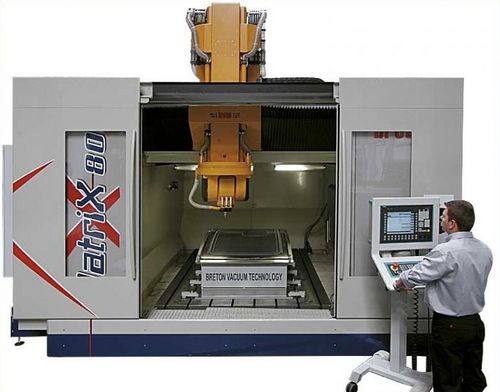

CNC machining center MATRIX 800

5-axisverticalfor composites

Interpolated 5-axis high-speed machining centre, the ideal solution for milling medium size workpieces in steel, aluminium, composite materials and resin. Speed, flexibility and compact design: Matrix 800, designed for high-speed machining requirements and the ideal choice for die and tool manufacturing and the aerospace industry, offers high performance and efficient machine dynamics all in a compact design satisfying problems related to limited space and production logistics. Matrix 800 has a work area of X = 2000, Y = 1600÷2500 and Z=800 and combines a compact design with precision machine dynamics and performance with an axis speed reaching 40m/min and accelerations up to 3m/sec2. The dual-drive gantry structure, a significant feature of Breton machining centres, offers a large work area guaranteeing maximum operator freedom of movement always respecting and conforming to the stringent safety directives and standards in force. Matrix 800 is designed for easy access to the work area facilitating workpiece loading and unloading operations even when machining large size components, and incorporates reliable safety features and solutions combined with machining performance and efficiency. The performance Matrix 800 offers the operator is further enhanced by the electro arc welded heat treated structure adequately reinforced for improved rigidity.
