ship multiplexer / for yachts / for digital sensors

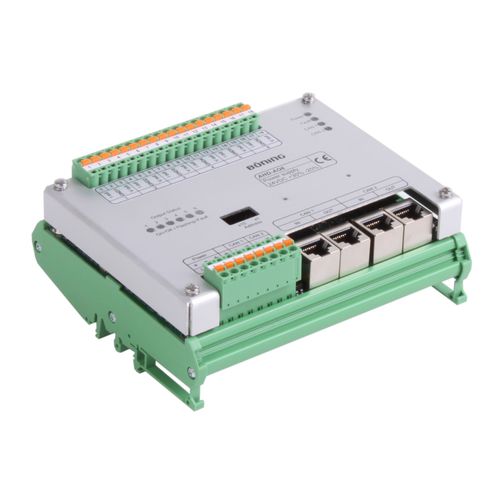

AHD-AO6

{{requestButtons}}

Characteristics

  • Options:

    for ships, for yachts, for digital sensors

Description

AHD-AO6 is a 6-channel output unit for the generation of analog voltages or currents. The integrated high-precision analog output converters are galvanically isolated. Each output signal can be configured within standardized limit values, thus allowing an uncomplicated integration into third-party systems.

The electronic unit in profile module housing provides 6 configurable outputs (current 0-20mA, 4-20mA, 0-24mA or voltage 0-5V or 0-10V). Additionally, 2 CAN interfaces ensure an uninterrupted communication with superior control or alarm systems.

The device is suitable for example for the switching and control of fans, lamps and other electrical loads. Dimming of illumination can also be done over the electronic unit. With the decentralized installation the cabling effort is significantly reduced.

The functions of the AHD-AO6 can be easily switched from a central station – for example from a display AHD 1215 that is installed on the bridge.
Product Features

Control of electrical loads
Configurable outputs (0 - 10V; 0 - 20mA)
Decentralized installation, thus reduction of cabling efforts
