ship monitoring and control panel / for yachts / camera
AHD-VCP

{{requestButtons}}

Characteristics

  • Application domain:

    for ships, for yachts

  • Applications:

    camera

Description

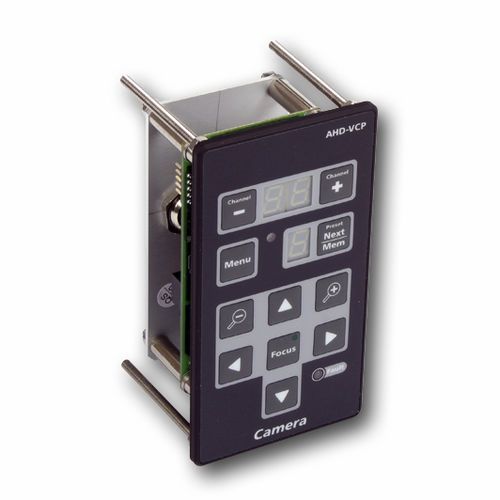

Video Control Panel for Video Control System AHD-VCS

The video control panel AHD-VCP is designed for selection and control of video cameras connected to video control system AHD-VCS. The unit is connected to CAN-bus for data communication with video distribution and control unit AHD-VDCU for the execution of camera control functions.
Product Features

Compact design for installation in consoles, control panels or control cabinets
Panel front dimension 70mm x 130mm
Degree of protection IP 67 (front side) for in and outdoor application
Control panel is assigned to a specific display or monitor by configuration
LED-display with push buttons for selection of video channel (video camera)
LED-display with push button for selection and storage of max. 4 preset positions per selected camera
Key field for camera control for pan, tilt, zoom and focus function
Menu push button for calling up OSD menu of camera
Operating push buttons illuminated with automatic LED dimming
CAN-bus for data communication with video distribution and control unit AHD-VDCU
