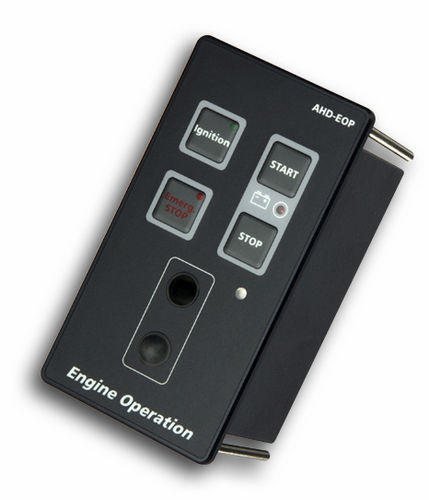

Yacht control panel AHD-EOP
engine

yacht control panel
yacht control panel
yacht control panel
yacht control panel
yacht control panel
yacht control panel
yacht control panel
Add to favorites
Compare this product

Characteristics

Application domain
for yachts
Applications
engine

Description

Engine Operation Panel for Ship Main Engines, Basic Module The engine operation panel AHD-EOP is a microprocessor-controlled device for the convenient and safe start-stop function of ship main engines. Instead of conventional key mechanics, the release of the engine operation is performed by means of a pluggable transponder key. Product Features Compact design for installation in consoles, control panels or control cabinets Front dimension 70mm x 130mm Degree of protection IP 67 (front side) for in and outdoor application One engine operation panel AHD-EOP to be assigned for each ship main engine Connection directly to engine switch box or via adapter module AHD-EOP units can be cascaded Simple installation in further control stands with reduced cabling demand Release of engine operation by means of pluggable transponder key Retraction of transponder key from keyhole with running engine will, as a standard, result in engine stopping Coding of transponder key by means of a master key Transmission of coding to further transponder keys is available Increased protection against unauthorized operation Illuminated push button for ignition release as well as for start and stop in front panel of the unit Integrated emergency stop push button Integrated charge control lamp Automatic dimming of illumination Connection of further engine operation panel AHD-EOP or AHD-DEOP by means of 8-pole connection sockets on rear side of the unit
