Ship monitoring and control panel AHD-DPS02 B42
for yachtsalarm

ship monitoring and control panel
ship monitoring and control panel
ship monitoring and control panel
ship monitoring and control panel
ship monitoring and control panel
ship monitoring and control panel
ship monitoring and control panel
Add to favorites
Compare this product

Characteristics

Application domain
for ships, for yachts
Applications
alarm

Description

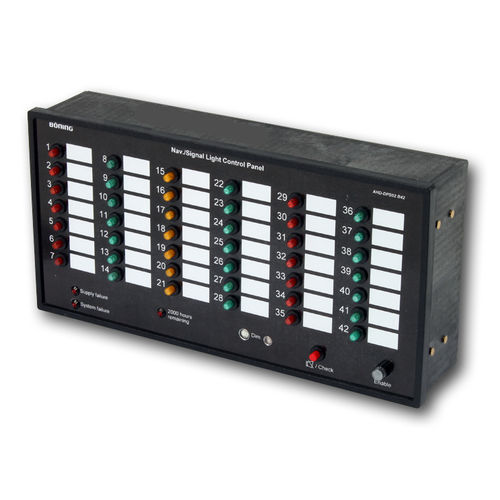

Operating Panel for Navigation and Signal Light Control and Monitoring System DPS02, for 42 Lamps The operating panel AHD-DPS02 B42 is a microprocessor-controlled device for conventional operation and status indication of max. 42 navigation and signal lights. Product Features Compact design for installation in consoles, control panels or control cabinets Front dimension 288mm x 144mm Degree of protection IP 22 (front, with front cover IP 54) Individual operating push button for switching on and off with integrated LED for status indications of max. 42 navigation and signal lights Replaceable text field for designation of lights Additional LED-indications for power supply and system faults as well as lamp lifetime warning message (e.g. 2000 hours remaining) Automatic dimming of LED-indications, adjustable Integrated alarm buzzer Push button for acknowledgement of acoustic alarm with lamp test function Push button “Enable” for selection of operating authorization for the unit Serial interfaces for connection to basic module AHD-DPS02 G14 and 3 extension modules AHD-DPS02 A07 Type approved by Germanischer Lloyd, Lloyd´s Register of Shipping, Russian Maritime Register of Shipping, American Bureau of Shipping (further approvals on demand)
