Fixed thruster T500
externalfor boatsfor ROVs

fixed thruster
fixed thruster
fixed thruster
fixed thruster
fixed thruster
fixed thruster
fixed thruster
Add to favorites
Compare this product


Characteristics

Type
fixed
Assembly
external
Application domain
for boats, underwater, for ROVs
Power source
electric
Power

202 W, 402 W, 681 W, 1,044 W (0.3 hp)

Thrust

Max.: 16.1 kgf

Min.: 4 kgf

Description

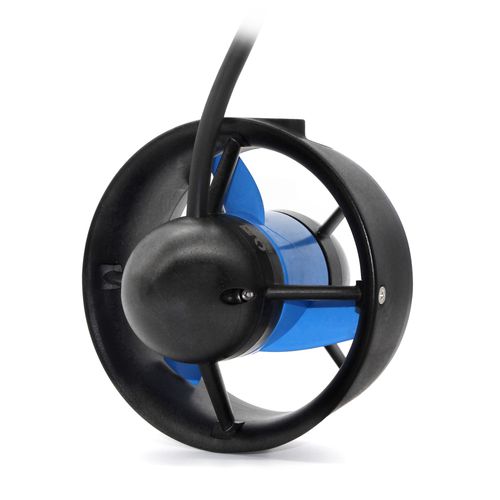

The T500 Thruster is our next-generation underwater thruster with three times more thrust than the T200 Thruster. With a 24V / 43.5A power rating, high efficiency, and ruggedized design, it is an ideal choice for high-power ROVs, surface vessels, AUVs, and more! It comes with a pre-installed WetLink Penetrator for rapid integration into your system. The T500 Thruster is our next-generation thruster with over three times as much thrust as the T200 Thruster. We designed it for high-power ROVs, surface vessels, and AUVs, as well as human-carrying applications like kayaks. It’s carefully designed to be rugged, powerful, and flexible in many applications. The T500 is designed to achieve its maximum performance of 16.1 kgf (35.5 lb) of thrust at an operating voltage of 24V and power consumption of just over 1 kW. That said, it also operates well at 16V, the voltage of our BlueROV2 and lithium-ion battery. At 16V, it consumes a similar amount of power to the T200 Thruster, but is more efficient and generates 70% more thrust. Like the T200, the T500 Thruster leverages our patented flooded thruster design, which is water-cooled, water-lubricated, and inherently pressure tolerant. It has an encapsulated stator and motor windings, a ruggedized and corrosion resistant magnet rotor, and high-performance plastic bearings. The body and propeller are made from impact resistant glass-filled polycarbonate plastic. The T500 Thruster is a three-phase sensorless brushless motor and requires an electronic speed controller (ESC) for operation. We recommend the Basic ESC 500, which is designed for the high-power requirements of the T500 running at 24V, however

Catalogs

No catalogs are available for this product.

See all of BlueRobotics‘s catalogs
