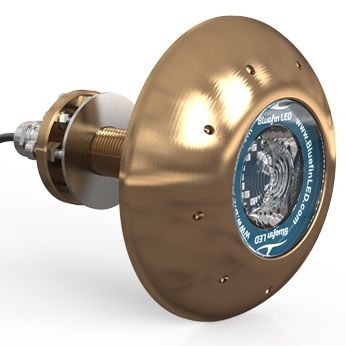

Manta Ray MR20
Suitable for boats 30m+/105ft+
Formidable performance with the added security of a thru-hull stem fitting.
A radical departure from conventional sealing methods the Manta Ray has an unique rear cassette design with multiple sealing system.
Machined from Billet AB2 Marine grade Bronze.
Suitable for Transom mounting on all hull types.
Built in driver technology with active thermal rollback.
RINA Type approval
12V version also available with 7000 fixture lumens (price on application)
Suitable transom mounting
Thru-Hull, requires 30mm hole cut out
Recommended for boats upto 40m+ / 130+ft
Max Lamp Lumens 16000 / Fixture Lumens 14,500
Typical LED life expectancy 50,000 + hours
Voltage 24v, Power Draw 5.1A
For Mains Voltage systems purchase our 110/240V PSU
Over voltage,current,reverse polarity,active thermal protection
Hydro Block and Nano Coating Technology
Fixture profile 32mm
Fixture diameter 140mm
Fixture Length 208.5mm
Lens: optical grade 8mm Boroscilicate glass,65 degree beam angle
Body AB2 Bronze throughout
2 years warranty
Delrin Isolation Sleeve must be used if fitting lights to Steel or Aluminium hulls
