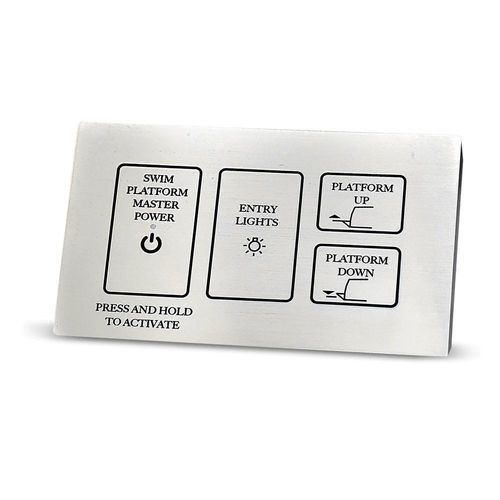

Yacht control panel MarineTouch 4Key

for boatsystemHMI

Upgrade your marine experience with the MarineTouch 4Key control panel – the ultimate solution for modern boat and yacht control. Designed to seamlessly integrate into your vessel, this state-of-the-art 4-button control panel brings a new level of ease, versatility, and performance to your fingertips. - Electrical Data - Operating Voltage: 12V DC @0.3A - LEDs: Blue, Green - Switch Function: Toggle (On/Off), Momentary, Continuous - Mechanical Data - Housing Materials: Aluminum 6061 T651 - Connection: DT04-3P + 3 wires, length of 12” 18AWG DT04-6P + 4 wires, length of 12” 18AWG - Actuation Force: 3-7 N - Finish: Anodize Color: Black/Neutral Laser Engraving Anodize Thickness: 17-19 micron - Environmental Data - Operating Temperature: -15°C to +55°C - Storage Temperature: -40°C to +75°C - IP Rating: Front Panel IP69K - Key Characteristics - Configurable Dot Illumination: Four piezo touch buttons elegantly illuminate to guide your interactions, even in low-light conditions. - Responsive Piezo Touch: Advanced piezo touch technology enables swift and accurate commands by hand or gloves. - CAN Bus Protocol: Utilizes CAN Bus protocol for robust and efficient communication network. - Versatile Switching: Supports toggle (On/Off), momentary, continuous, timer-based, and programmable functions. - Built To Last: Sealed, moving-parts-free design safeguards against corrosion and ensures long-lasting performance. - Your Vessel, Your Rules: Customize button assignments, functions, and aesthetics to align with your preferences and operational needs. - Ultimate Protection: IP69K protection ensures resilience against water, dust, and extreme conditions. - IoT-Ready: Optional IoT capabilities via Bluetooth for seamless connectivity and remote management. - Mechanical Drawing available in datasheet and above image. - Specifications / Technical Characteristics: - Product: MarineTouch 4Key - Brand: Barantech - Model: MarineTouch 4Key - Operating Voltage: 12V DC @0.3A - LEDs: Blue, Green - Switch Function: Toggle (On/Off), Momentary, Continuous - Housing Material: Aluminum 6061 T651 - Connection: DT04-3P + 3 wires, 12” 18AWG; DT04-6P + 4 wires, 12” 18AWG - Actuation Force: 3-7 N - Finish: Anodize Color: Black/Neutral Laser Engraving, Thickness: 17-19 micron - Operating Temperature: -15°C to +55°C - Storage Temperature: -40°C to +75°C - IP Rating: Front Panel IP69K - CAN Bus Protocol: Yes - IoT-Ready: Optional Bluetooth
