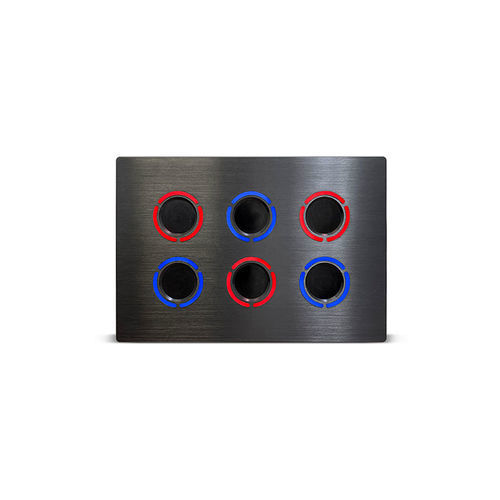

Boat switch panel MarineTouch Pro6

touchLED

Step into next-generation boat control with the MarineTouch Pro6, a robust aluminum switch panel featuring six fully configurable piezo touch buttons with vibrant RGB ring illumination. Built for the marine environment, the Pro6 gives you full flexibility to control and customize essential onboard functions — from lights to pumps and beyond — with seamless integration into both new and retrofit systems. With no moving parts, superior water resistance, and a sleek modern finish, the MarineTouch Pro6 delivers reliable performance and stunning visual feedback, transforming every touch into total command. - Electrical Data - Operating Voltage: 12V DC @1A - LEDs – Internal Color: Switch Off – Blue LED On; Switch Off – Red LED On - Switch Function: Standard: Toggle (On/Off) for 4 keys + 2 keys up to 5 sec. Optional: Momentary, Continuous - Mechanical Data - Housing Materials: Aluminum 6061 T651 - Connection: 2 Wires 22 AWG, Length 300mm - Actuation Force: 3-7 N - Relay Dry Contact: SPST, N.O.250Vac @ 20A - Finish: Black Anodize; Optional Laser Engraving - Environmental Data - Operating Temperature: -15°C to +55°C - Storage Temperature: -40°C to +70°C - IP Rating: Front Panel IP69K - Key Characteristics - Configurable Brilliance: 6 dynamic ring illuminated piezo touch buttons, each with RGB ring LEDs. - Seamless Integration: Easily integrates into existing setups, suitable for retrofitting and modernization. - Effortless Precision: Advanced piezo touch technology responds to hand, glove, or tools. - Versatile Switching: Supports momentary, toggle, prolonged, continuous, timer, and programmable modes. - Built to Endure: No moving parts, designed for harsh marine environments, ensures longevity and reliability. - Your Vision, Your Design: Customizable panel with optional laser engravings for personalization. - Ultimate Protection: IP69K front rating for water and dust resistance. - Technical Specifications: - Product: MarineTouch Pro6 - Material: Aluminum 6061 T651 - Number of Buttons: 6 piezo touch buttons - Illumination: RGB ring LEDs - Operating Voltage: 12V DC @1A - Relay: SPST, N.O.250Vac @ 20A - Connection: 2 Wires 22 AWG, 300mm length - Actuation Force: 3-7 N - Finish: Black Anodize, optional laser engraving - Operating Temperature: -15°C to +55°C - Storage Temperature: -40°C to +70°C - IP Rating: IP69K (front panel)
