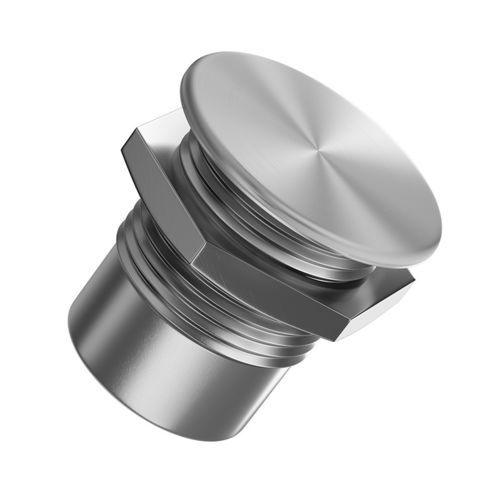

Boat switch SMF6

electrical circuitwaterprooftouch

Product Overview: SMF6 is a non-illuminated touch metal piezo switch made without moving mechanical parts, featuring waterproof and tamper-resistant construction, making it one of the most durable products. SMF6 can be fully customised and is ideal for use in even the harshest environments, such as the oil & gas and chemical industry, public transport, aviation, and more. Technical Drawings & Diagrams: - Electrical Diagram - Technical Drawing Electrical Data: - Switch Function: N.O. Momentary (N.C. optional), Prolonged, Toggle (On/Off), Continuous as well as Programmable, Timer, Slide, Self Diagnostic, and WiFi Enabled optional - Switch Voltage: 0-24 AC/DC - Switch Current: 0.2A standard (up to 1 Amp optional) - Rated Breaking Capacity: Power Dissipation 50,000,000 - Switch Resistance OFF: > 20M Ohm - Switch Resistance ON: 50,000,000 - Switch Resistance OFF: > 20M Ohm - Switch Resistance ON: < 5 Ohm - Switch Capacitance: 10 pF - Switch On Duration: Up to 20 sec - Contact Configuration: Free Polarity - Housing Materials: Aluminum 6061 T651, Stainless Steel (Type 303, 304 or 316), Plastic - Actuating Force: 2-5 Newtons - Non-Illuminated: Polycarbonate - Connection: 22 AWG standard (pin, tab or terminal blocks optional) - Shock Protection: IK 10 - Fastening Torque: 2.5 Nm - Operating Temperature: -20°C to +75°C - Storage Temperature: -40°C to +125°C - IP Protection: IP69 K - Finishes: Anodized Aluminum in Silver, Black, Red, Green, Blue or Gold - Wire Length: 30 cm, 22 gauge (longer length, connectors, pins or terminal block optional) - Marking: Laser Engraving or Anodized printing optional
