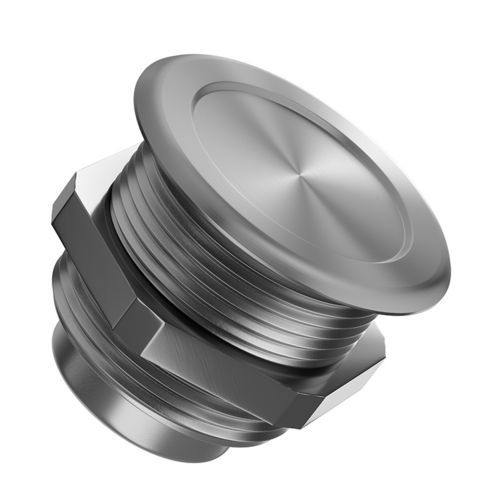

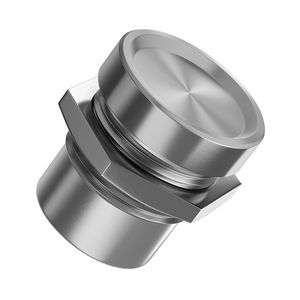

Piezoelectric switch SBS2

touch

SBS2 is a fully customizable non-illuminated touch metal piezo switch, developed to provide optimal performance for users in the toughest conditions. There are no moving mechanical components in the product, and it is fully shock- and waterproof, meeting IP68 K / IP69 K. These parameters allow the SBS2 touch metal piezo switch to be used in different applications, including outdoor, defence, marine, and more. - 19 mm, recessed Electrical Data - Switch Function: N.O. Momentary (N.C. optional) Prolonged, Toggle (On/Off), Continuous as well as Programmable, Timer, Slide, Self Diagnostic, and WiFi Enabled optional - Switch Voltage: 0-24 АС/DC - Switch Current: 0.2 A standard (up to 1 Amp optional) - Rated Breaking Capacity: Power Dissipation 50,000,000 - Switch Resistance OFF: > 20M Ohm - Switch Resistance ON: 50,000,000 - Housing: Aluminum 6061 T651, Stainless Steel (303, 304, 316), or Plastic - Operating temperature: -20°C to +75°C - Storage temperature: -40°C to +125°C - Switch voltage: 0-24 AC/DC - Switch current: 0.2 A standard (up to 1 A optional) - Switch resistance OFF: > 20M Ohm - Switch resistance ON: < 5 Ohm - Switch capacitance: 10 pF - Switch on duration: Up to 20 sec - Contact configuration: Free polarity - Shock protection: IK 10 - Fastening torque: 2.5 Nm
