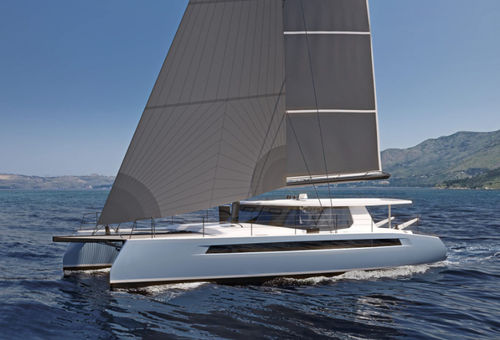

Catamaran sailing yacht 540

cruising3-cabin4-cabin

Overview
The Balance 540 is a next‑generation high‑technology carbon catamaran, available in Carbon Core and Carbon Core+ versions. Designed for long‑range passagemaking, it combines speed, internal volume and simplified handling for reduced crews.

Performance
This model prioritizes speed and control: foam hulls reinforced with carbon, Carbon Core internal structure, bowsprit, forward beam, carbon daggerboards and carbon rudders. The yacht sails quietly in light airs and produces downwind surfs exceeding 20 knots. Three furling headsails (overlapping genoa, self‑tacking solent and reacher) simplify power management for a small crew.

Construction
Full epoxy construction with Carbon Core: bulkheads, cabin soles, separating panels and structural bulk components (mast step, aft beam, daggerboard trunks and rudders) are made in carbon. The Carbon Core+ version adds fully carbon roof, cockpit, forward deck and aft chines for increased stiffness and reduced weight.

Systems & equipment

• Available with VersaDrive system (hybrid and E‑Power versions)
• Integrel E‑Drive / Integrel E‑Power 48 V alternators (option) to reduce consumption and remove the need for a third diesel engine
• Configuration designed to reduce maintenance, improve safety (option for propane‑free vessels) and optimise electrical autonomy (lithium batteries, solar panels up to 3000 W)

Polars and performance predictions
Polars (VPP forecasts) were calculated by advanced modelling (Wolfson Unit, University of Southampton) based on an average displacement. They indicate performance dependent on sea state, hull condition and helmsman skill and do not constitute guaranteed results.

Walkthrough and media
The page includes a guided video tour and several detailed presentations (integrated presentations and technical demonstrations).

Characteristics / technical specifications

• Length overall (LOA): 16.61 m
• Length at waterline (LWL): 16.60 m
• Beam overall (B): 8.38 m
• Mainsail: 155.91 m²
• Genoa: 64.54 m²
• Asymmetric spinnaker: 250.15 m²
• Indicated sail area: 179.10 m²
• Code 0: 142.74 m²
• Draft (daggerboards down): 3.16 m
• Draft (daggerboards up): 1.24 m
• Air draft: 24.82 m
• Headroom under deck: 0.88 m
• Light displacement: 14,500 kg
• Maximum loaded displacement: 20,150 kg
• Davit capacity: 400 kg / davit
• VersaDrive (option/configuration): 2 x 15 kW (2 x 20 CV) Integrel E‑Drive (Integrel E‑Power 48 V)
• Engines (reference): Yanmar 4JH57 x SD60 — mention of 2 x 43 kW (2 x 57 CV) depending on configuration
• Fuel capacity: 2 x 500 litres
• Fresh water capacity: 2 x 390 litres
• Black water capacity: 2 x 61 litres
• Battery pack (VersaDrive Hybrid): lithium park 36 kW at 48 V (capacity and charge rate up to 15 kW per engine referenced)
• Solar panels: possibility up to 3000 W (air‑cooled glass) depending on configuration
