cruising super-yacht / high-speed / raised pilothouse / aluminum

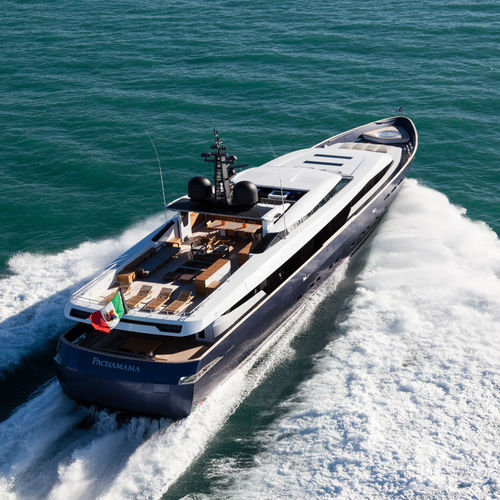

PACHAMAMA

{{requestButtons}}

Characteristics

  • Intended use:

    cruising, high-speed

  • Deck layout:

    raised pilothouse

  • Material:

    aluminum

  • Below-deck configuration:

    5-cabin

  • Length:

    43.65 m (143'02")

Description

PRINCIPAL DIMENSIONS AND FEATURES

Length over all: 43.65 meters
Beam: 8.30 meters
Draft: 1.70 meter
Half load displacement approx: 250 tons
Fuel capacity: 41,0 cubic metres
Fresh water capacity: 5,8 cubic metres
Holding tank: 900 liters
Grey water tank: 900 liters
International gross tonnage: 378 GRT about
Guests: Up to 10
Crew: 7
Material of Hull: Aluminium
Material of Superstructure: Aluminium
Main engines: 2 x MTU 16V4000 M93L
Maximum speed: 33.0 knots about
Range at cruising speed up to: 700 nm
Maximum power: 2 x 3440 kW at 2,100 rpm
Gearbox: ZF V Drive 9060 series – reduction ratio 3,2:1
Generators: 2 x 100 kW, 400 V 50 Hz Kohler
Stabilizers underway and at
anchor: 4 x AB Trac

OUTLINE SPECIFICATIONS

Hull: Motor Yacht a due eliche, doppio spigolo
Builder: Baglietto S.p.A.
Hull and engineering: Baglietto Spa
Exterior Design: F. Paszkowski
Interior Decor: F. Paszkowski, Baglietto Spa
