Ship partition wall sandwich panel AYRLITE® 2084
decorativealuminum honeycombaluminum

ship partition wall sandwich panel
ship partition wall sandwich panel
ship partition wall sandwich panel
Add to favorites
Compare this product


for ship partition walls, decorative
aluminum honeycomb

1,200 mm (47 in)


2,400 mm (94 in)


Min.: 10 mm (0 in)

Max.: 30 mm (1 in)

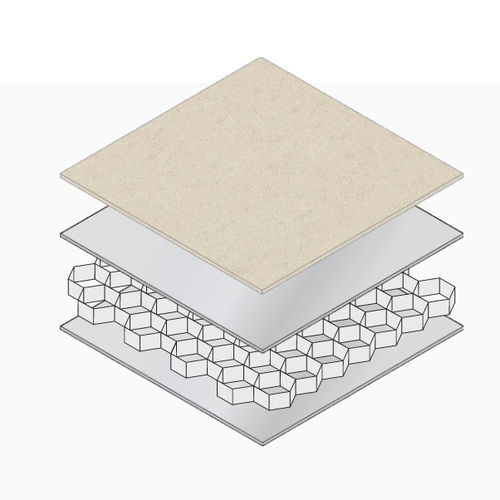

Strain-hardened hexagonal cell aluminium honeycomb has optimum mechanical properties and is able to carry shear loads at much lower weight than foam or other core types. Advanced adhesive technology has enabled AYRLITE® 2084 to achieve excellent fire performance. AYRLITE® 2084 has been principally developed for high performance marine vessel interior applications. Wide range of decorative options: colours, patterns, wood grains, etc. Panels are produced with the decorative vinyl on either one or both faces. Decorative faces are reinforced with aluminium sheet. A broad range of aluminium reinforcement sheet thicknesses are available, including 0.3mm, 0.5mm, 0.8mm and 1.0mm*. Aluminium reinforcement sheets can be selected with different thicknesses on different faces: for example, 0.8mm for front face, 0.3mm for back face. Aluminium reinforcement sheets are 5000-series alloy for maximum strength and anti-corrosion performance. Aluminium honeycomb cell size is 6.35mm or 12.7mm. *For certification purposes minimum 0.8mm aluminium sheet is required as reinforcement for the vinyl face(s). APPLICATION Wall linings C-class bulkheads Internal modules Cabinetry Partitions Ceilings Tables Doors Furniture


No catalogs are available for this product.
