Broken finger float level switch AI.LXT204for shipsfor boatfor tanks
Add to favorites
Compare this product
Characteristics
- Technology
- broken finger float
- Application domain
- for ships, for boat
- Applications
- for tanks, for storage tanks
Description

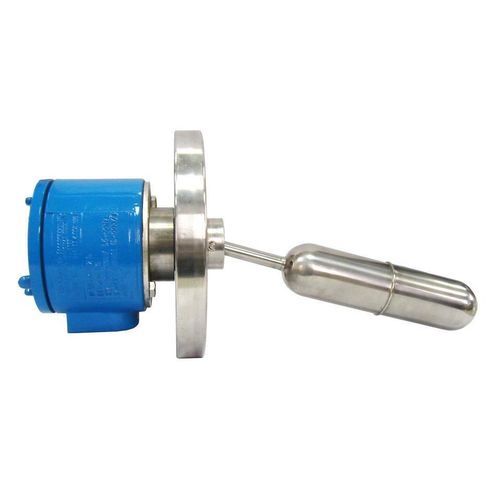

The AI.LXT204 is the professional solution for precise and reliable liquid level control in harsh industrial environments and potentially explosive atmospheres. Thanks to its flange design and rugged stainless steel construction, it is ideal for storage tanks, chemical plants, and oil & gas applications.
Main Features
Explosion-Proof Certification: Designed for maximum safety, with an EEx d IIC-T6 certified enclosure and IP66 protection rating, resistant to dust and powerful water jets.
High-Quality Materials: All wetted parts are made of 316 stainless steel, ensuring excellent corrosion resistance and long-lasting durability.
Installation Versatility: Available in standard or extended arm versions, with flanged connections from 1 1/2" to 4" (JIS, ANSI, or DIN standards).
High Thermal and Pressure Resistance: Operates safely within a temperature range of -20°C to +150°C and supports pressures up to 3.0 MPa (with an option of up to 4.5 MPa).
Flexible Configuration: Equipped with a SPDT microswitch (single or double as an option) for easy management of alarm circuits or pump automation.
Technical Specifications
Wetted Parts Material: 316 Stainless Steel
Operating Temperature: -20°C / +150°C
Maximum Pressure: 30 kg/cm² (Optional 45 kg/cm²)
Electrical Contacts: 1 x SPDT (Optional 2 x SPDT)
Contact Rating: 3A/250VAC, 5A/125VAC, 4A/30VDC
Minimum Liquid Specific Gravity: ≥ 0.7 (Optional lower values available upon request)
Conduit Connection: 1/2" NPT or 3/4" NPT
Why choose the AI.LXT204 model?
Choosing an ASIT Italia product means relying on certified precision engineering (ABS, EAC, CE, cRUus). This level switch is designed to minimize maintenance and ensure operational continuity even under the most critical conditions.
Main Features
Explosion-Proof Certification: Designed for maximum safety, with an EEx d IIC-T6 certified enclosure and IP66 protection rating, resistant to dust and powerful water jets.
High-Quality Materials: All wetted parts are made of 316 stainless steel, ensuring excellent corrosion resistance and long-lasting durability.
Installation Versatility: Available in standard or extended arm versions, with flanged connections from 1 1/2" to 4" (JIS, ANSI, or DIN standards).
High Thermal and Pressure Resistance: Operates safely within a temperature range of -20°C to +150°C and supports pressures up to 3.0 MPa (with an option of up to 4.5 MPa).
Flexible Configuration: Equipped with a SPDT microswitch (single or double as an option) for easy management of alarm circuits or pump automation.
Technical Specifications
Wetted Parts Material: 316 Stainless Steel
Operating Temperature: -20°C / +150°C
Maximum Pressure: 30 kg/cm² (Optional 45 kg/cm²)
Electrical Contacts: 1 x SPDT (Optional 2 x SPDT)
Contact Rating: 3A/250VAC, 5A/125VAC, 4A/30VDC
Minimum Liquid Specific Gravity: ≥ 0.7 (Optional lower values available upon request)
Conduit Connection: 1/2" NPT or 3/4" NPT
Why choose the AI.LXT204 model?
Choosing an ASIT Italia product means relying on certified precision engineering (ABS, EAC, CE, cRUus). This level switch is designed to minimize maintenance and ensure operational continuity even under the most critical conditions.
Catalogs
AI.LXT204
3 Pages
