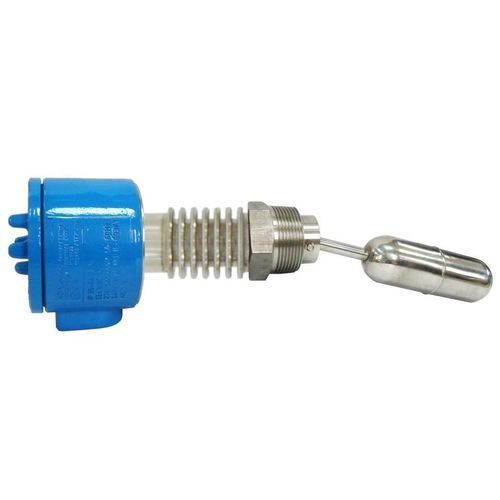

Broken finger float level switch AI.LXT203S

for boatfor shipsfor storage tanks

The AI.LXT203S is the rugged and reliable solution for liquid control in harsh industrial conditions. Specifically designed for horizontal mounting, this device uses a magnetic coupling mechanism to actuate a SPDT microswitch, ensuring precise ON-OFF contact without physical contact between the fluid and the electrical component.
This model features additional cooling fins, allowing the device to operate safely even in extremely high-temperature environments.

Main Features
Extreme Resistance: Designed to withstand operating temperatures up to +350°C.
Certified Safety: Explosion-proof enclosure with EEx d IIC-T6, II 2 GD certification and IP66 protection rating.
High-Quality Materials: All wetted parts are made of 316 stainless steel, ensuring maximum chemical compatibility and durability.
Installation Versatility: Threaded process connections from 1 1/2" to 3" NPT.
High Pressure: Supports standard operating pressures up to 3.0 MPa (30 kg/cm²), with options available up to 4.5 MPa.

Technical Specifications
Switch Type: SPDT micro switch
Electrical Rating: 3A/250VAC, 5A/125VAC, 4A/30VDC
Temperature Limits: -20°C to +200°C (Standard) or up to +350°C (Optional)
Specific Gravity: Fluid ≥ 0.7 (options for < 0.7 on request)
Conduit Connection: 1/2" NPT (F) or 3/4" NPT (F)

Ideal Applications
This sensor is ideal for storage tanks, chemical and petrochemical plants, boilers, and control systems where level accuracy is critical and environmental conditions are challenging.
