Catamaran 45cruisingcharter3-cabin
Add to favorites
Compare this product
Characteristics
- Number of hulls
- catamaran
- Intended use
- cruising, charter
- Number of cabins
- 3-cabin, 4-cabin
- Maximum berth number
- 12-berth
- Deck layout
- flybridge
- Rigging
- with bowsprit
- Other characteristics
- sail-drive
- Overall length
14.38 m
(47'02" )- Width
7.77 m
(25'05" )- Draft
1.56 m
(5'01" )- Displacement
16.15 t, 20.8 t
(17.8 us ton, 22.93 us ton)- Sail area
126 m²
(1,356 ft²)- Motor power
100 ch
(100 hp)- Fuel capacity
620 l
(164 gal)- Fresh water capacity
880 l
(232 gal)
Description
Overview

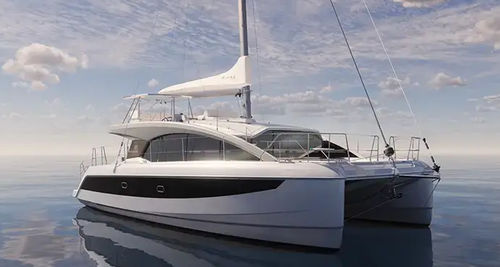

Arriving 2026. The Aquila 45 Sail catamaran is engineered for efficient cruising and flexible use in private ownership or charter operations. Its layout emphasizes usable deck space, direct bridge-to-bow circulation and panoramic living areas that enhance onboard comfort.
Description
Thoughtful design maximizes interior volume and exterior living areas. A fixed bow cockpit creates a dedicated foredeck social space, while the aft cockpit is configured for dining and crew operations. Large glazing and open-plan salons provide sightlines and natural light, making the yacht suitable for extended passages and guest-oriented charters.
Layout & Accommodation
Available in multiple layouts to suit owner or charter needs, with options for 3, 4 or 5 cabins. Each cabin can feature private access and en-suite heads. The main saloon and galley are arranged for functional circulation and provisioning.
Performance & Sails
Standard mainsail area: 78 SQ M / 839.6 SQ FT. Furling genoa: 47.58 SQ M / 512.1 SQ FT. Total upwind area: 125.6 SQ M / 1,357.9 SQ FT. Mast and rig dimensions support stable upwind performance; draft and beam values balance harbour access and sailing stability.
Propulsion & Tanks
Auxiliary propulsion: 2x Volvo Penta 50HP saildrives. Fuel tank capacity: 620 L / 163 GAL. Systems are laid out for service access and maintenance typical in commercial charter operations.
Certification & Capacity
CE certification (preliminary): A:12, B:12, C:20, D:30. Maximum passengers: 30. Configuration and equipment levels determine final certification and passenger capacity.
Specifications (table)
Length Overall — 14.38M / 45’
Beam — 7.77M / 25’ 5”
Height above waterline — 4.55M / 14’ 9”
Mast height above waterline w/light load — 21.55M / 70’ 7”
Draft — 1.56M / 5’ 1” (will vary depending on load)
Maximum passengers — 30
Cabins — 4 / 5
Heads with Showers — 4 / 5
Mainsail standard pin top — 78 SQ M / 839.6 SQ FT
Furling Genoa — 47.58 SQ M / 512.1 SQ FT
TOTAL UPWIND AREA — 125.6 SQ M / 1,357.9 SQ FT
DIESEL — 2x Volvo Penta 50HP Saildrive
Fuel Tank — 620L / 163GAL
CE Certification (preliminary) — A: 12, B: 12, C: 20, D: 30
Technical specifications
Arriving 2026. The Aquila 45 Sail catamaran is engineered for efficient cruising and flexible use in private ownership or charter operations. Its layout emphasizes usable deck space, direct bridge-to-bow circulation and panoramic living areas that enhance onboard comfort.
Description
Thoughtful design maximizes interior volume and exterior living areas. A fixed bow cockpit creates a dedicated foredeck social space, while the aft cockpit is configured for dining and crew operations. Large glazing and open-plan salons provide sightlines and natural light, making the yacht suitable for extended passages and guest-oriented charters.
Layout & Accommodation
Available in multiple layouts to suit owner or charter needs, with options for 3, 4 or 5 cabins. Each cabin can feature private access and en-suite heads. The main saloon and galley are arranged for functional circulation and provisioning.
Performance & Sails
Standard mainsail area: 78 SQ M / 839.6 SQ FT. Furling genoa: 47.58 SQ M / 512.1 SQ FT. Total upwind area: 125.6 SQ M / 1,357.9 SQ FT. Mast and rig dimensions support stable upwind performance; draft and beam values balance harbour access and sailing stability.
Propulsion & Tanks
Auxiliary propulsion: 2x Volvo Penta 50HP saildrives. Fuel tank capacity: 620 L / 163 GAL. Systems are laid out for service access and maintenance typical in commercial charter operations.
Certification & Capacity
CE certification (preliminary): A:12, B:12, C:20, D:30. Maximum passengers: 30. Configuration and equipment levels determine final certification and passenger capacity.
Specifications (table)
Length Overall — 14.38M / 45’
Beam — 7.77M / 25’ 5”
Height above waterline — 4.55M / 14’ 9”
Mast height above waterline w/light load — 21.55M / 70’ 7”
Draft — 1.56M / 5’ 1” (will vary depending on load)
Maximum passengers — 30
Cabins — 4 / 5
Heads with Showers — 4 / 5
Mainsail standard pin top — 78 SQ M / 839.6 SQ FT
Furling Genoa — 47.58 SQ M / 512.1 SQ FT
TOTAL UPWIND AREA — 125.6 SQ M / 1,357.9 SQ FT
DIESEL — 2x Volvo Penta 50HP Saildrive
Fuel Tank — 620L / 163GAL
CE Certification (preliminary) — A: 12, B: 12, C: 20, D: 30
Technical specifications
- Model name: 45 Sail
- Manufacturer / Brand: Aquila
- Arrival / Launch: 2026
- Length Overall: 14.38M / 45’
- Beam: 7.77M / 25’ 5”
- Height above waterline: 4.55M / 14’ 9”
- Mast height above waterline (light load): 21.55M / 70’ 7”
- Draft: 1.56M / 5’ 1” (varies with load)
- Maximum passengers: 30
- Cabin configurations: multiple options (3, 4 or 5 cabins depending on configuration)
- Heads with showers: 4 / 5
- Sail areas: Mainsail 78 SQ M / 839.6 SQ FT; Furling Genoa 47.58 SQ M / 512.1 SQ FT; Total upwind area 125.6 SQ M / 1,357.9 SQ FT
- Auxiliary propulsion: 2x Volvo Penta 50HP Saildrive
- Fuel tank capacity: 620 L / 163 GAL
- CE Certification (preliminary): A:12, B:12, C:20, D:30
