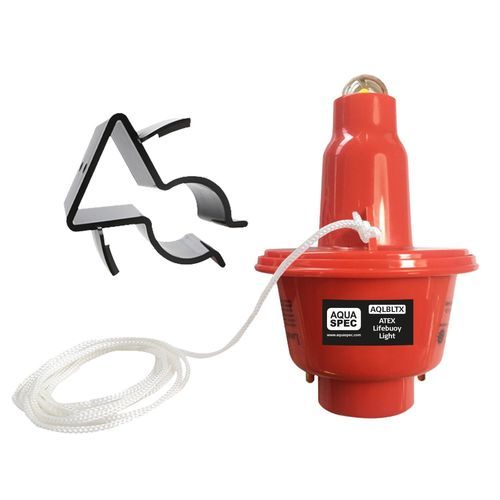

Marine lifebuoy light AQLBLTX

SOLASMEDUSCG

Overview
The AQLBLTX Lifebuoy Light is ATEX & IECEx certified for use in hazardous marine atmospheres (zones 0, 1 & 2) with a T4 temperature class. It provides automatic activation on water contact and is designed for direct mounting to lifebuoys in offshore and on-board safety applications.

Features

• Automatic white flashing LED output with intensity ≥2.0cd
• Gravity-assisted floating LED head for reliable visibility
• Dual activation: water sensor plus gravity sensor
• Compact design with clip and rope for simple installation
• Maintenance-free lithium battery with 5-year storage life
• Tamper-proof construction

Fitting

• Suitable for installation on all types of lifebuoys; avoid mounting in electrostatically conductive locations (unearthed conductive capacitance 15 pF)
• Delivered with a fixing clip and rope; clip should be mounted adjacent to the lifebuoy and the light secured to the clip and tied to the lifebuoy
• When deployed, the light must release from the clip and remain attached to the lifebuoy while floating

Operation

• Double activation system: gravity sensor causes the head to float, water sensor triggers light
• On water contact the lamp head floats and the water sensor activates a flashing white light ≥2.0cd
• Rated operating duration: ≥20 h above 2.0cd (15 h at -1°C)
• The light automatically switches off when sensors leave the water

Approvals & Certification
Certified to relevant marine and hazardous-area standards including MSC.81(70) as amended, MED, USCG, ATEX & IECEx. Also certified/approved to IMO SOLAS and UK MER where applicable.

Technical specifications

• Model: AQLBLTX ATEX Lifebuoy Light
• Colour: White LED
• Activation: Automatic (water + gravity sensors)
• Dimensions: main body ø90 x 133 mm
• Weight: light 180 g / clip 36 g
• Battery type: Lithium
• Output: ≥2.0cd
• Duration: ≥20 h above 2.0cd (15 h at -1°C)
• Storage life: 5 years from date of manufacture
• Approvals: MSC.81(70) as amended, MED, USCG, ATEX & IECEx; IMO SOLAS / UK MER where applicable
