Boat watermaker M series

for sailboatsreverse osmosis220-240 V

Overview

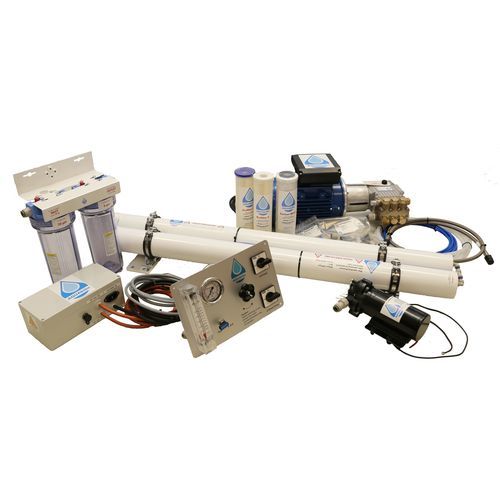

The AQUAbibe M-Series is a modular watermaker system designed for installation on small boats. Pre-assembled components and all essential parts are included in the M-Series kits to simplify on-board installation.

Operation and Power Options
Designed to operate with small generators such as the Honda EU22i (formerly EU 2000i). Can be powered from batteries via an inverter (example: VictronEnergy Phoenix 3000 Smart 12/3000). Compatible with lithium battery systems when used with a suitable inverter. Control panel operates on DC 12 V.

Models and Pricing (excl. VAT)

• AQUAbibe M-50 — 50 l/h — Price: €4,999 (offer: €3,999)
• AQUAbibe M-75 — 75 l/h — Price: €5,099 (offer: €4,099)
• AQUAbibe M-90 — 90 l/h — Price: €5,799 (offer: €4,799)
• AQUAbibe M-140 — 140 l/h — Price: €5,899 (offer: €4,899)

Per-model specifications
M-50

• Fresh water production: 50 l/h
• RO membranes SW30-2540: 1
• High pressure pump: AC 220 V / 50 Hz — max. 1,100 W
• Low pressure pump: DC 12 V — max. 150 W
• Price (excl. VAT): €4,999 — offer shown: €3,999

M-75

• Fresh water production: 75 l/h
• RO membranes SW30-2540: 1
• High pressure pump: AC 220 V / 50 Hz — max. 1,500 W
• Low pressure pump: DC 12 V — max. 150 W
• Price (excl. VAT): €5,099 — offer shown: €4,099

M-90

• Fresh water production: 90 l/h
• RO membranes SW30-2540: 2
• High pressure pump: AC 220 V / 50 Hz — max. 1,100 W
• Low pressure pump: DC 12 V — max. 150 W
• Price (excl. VAT): €5,799 — offer shown: €4,799

M-140

• Fresh water production: 140 l/h
• RO membranes SW30-2540: 2
• High pressure pump: AC 220 V / 50 Hz — max. 1,500 W
• Low pressure pump: DC 12 V — max. 150 W
• Price (excl. VAT): €5,899 — offer shown: €4,899

General (all models)

• Low pressure pump: included
• High pressure hoses: 2 hoses, lengths 2000 mm & 2500 mm (exchangeable; other lengths on request)
• Low pressure pre-filters: 2 filter housings, filters 5 µm & 20 µm
• Activated carbon filter: 1 housing and 1 activated carbon filter (to be mounted in the vessel fresh water supply line)
• Control panel: included; dimensions 300 x 200 x 150 mm; operating power DC 12 V
• Control box power input: AC 220 V / 50 Hz & DC 12 V; connection cable to panel: 3000 mm

Technical specifications

• Product family: AQUAbibe M-Series modular watermaker system
• Intended installation: suitable for small boats (example: installed on a 32 ft sailboat)
• Typical generator compatibility: Honda EU22i (EU 2000i)
• Inverter compatibility: e.g. VictronEnergy Phoenix 3000 Smart 12/3000; compatible with lithium battery setups when used with appropriate inverter
• RO membranes: SW30-2540
• Fresh water production rates: 50 / 75 / 90 / 140 l/h
• High pressure pump power: AC 220 V / 50 Hz — max. 1,100 W (M-50, M-90) or 1,500 W (M-75, M-140)
• Low pressure pump power: DC 12 V — max. 150 W
• Included accessories: low pressure pump, control panel, 2 high pressure hoses, pre-filters, activated carbon filter housing
• Control box dimensions: 300 x 200 x 150 mm; connection cable length: 3000 mm

Note
The M-Series is supplied as a modular, pre-assembled kit. Check local regulations, available space on board and required electrical configuration prior to installation.
