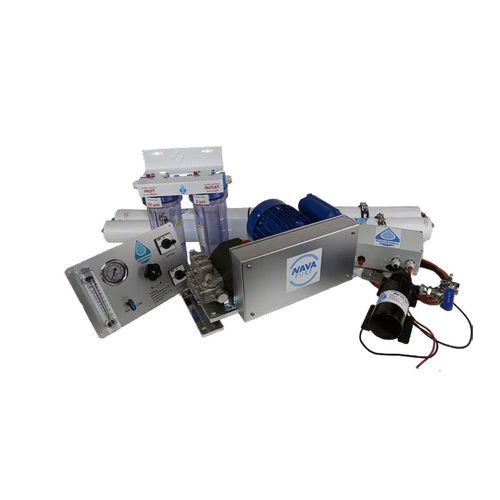

Boat watermaker NAVA PURE

reverse osmosis12 Vsingle membrane

Overview
Seawater desalination system for fresh drinking water on board with a smart split-design. All-in-one watermaker series offering a balance between freshwater output and onboard power requirements. Separation of the 230V AC high-pressure pump and the 12V DC feed pump enables easier integration with 12V inverter-based power systems.

Key benefits

• Inverter operations: Suitable for boats powering 230V equipment from 12V battery banks via inverters; split-pump design reduces high starting currents of standard AC motors.
• Flexible installation: Separate pumps allow installation in confined or angled spaces on board.
• Freshwater output range: Models delivering approx. 35 to 125 l/h to suit different vessel sizes and needs.

Series description
The AQUAbibe NAVA PURE series comprises modular reverse osmosis systems designed for reliable onboard desalination. The split-design (230V AC high-pressure pump + 12V DC feed pump) provides optimal electrical load distribution and simplifies integration with 12V systems using appropriately sized inverters. The series uses widely available standard components for global serviceability, making it suitable for extended offshore cruising.

Components included in the NAVA PURE series

• High-pressure pump with 230V AC electric motor
• 12V DC diaphragm feed pump rated for continuous-duty operation
• Pre-assembled three-way valve for flushing
• Control panel with 12V DC control voltage, one pressure gauge, tank/second outlet switching and pressure regulating valve
• Mobile electrical box for control electronics (two switching relays)
• Pre-assembled pressure vessels for RO membranes (1–3 membranes depending on model)
• Original FilmTec SW30-2540 membranes for NAVA PURE models
• Original FilmTec SW30-2521 membranes for NAVA PURE COMPACT models
• Pre-assembled pre-filter unit (20 µm and 5 µm pre-filters)
• Activated carbon filter including housing
• High-pressure hoses (2 m and 2.5 m lengths)
• Installation materials (hydraulic fittings, hoses for seawater/brine/freshwater, pre-filters, etc.)

Models (NAVA PURE)
Model | Freshwater Output [l/h] | Energy Consumption [kW] | Number of RO Membranes | Price (excl. VAT)
NAVA PURE 05 30 | 35 | 0.6 | 1 | € 4.799,-
NAVA PURE 05 60 | 60 | 0.6 | 2 | € 5.649,-
NAVA PURE 07 65 | 65 | 0.85 | 2 | € 5.699,-
NAVA PURE 07 95 | 95 | 0.85 | 3 | € 6.549,-
NAVA PURE 11 55 | 55 | 1.25 | 1 | € 4.899,-
NAVA PURE 11 95 | 95 | 1.25 | 2 | € 5.749,-
NAVA PURE 11 125 | 125 | 1.25 | 3 | € 6.599,-

Models (NAVA PURE COMPACT)
Model | Freshwater Output [l/h] | Energy Consumption [kW] | Number of RO Membranes | Price (excl. VAT)
NAVA PURE COMPACT 05 45 | 45 | 0.6 | 2 × SW30-2521 | € 5.549,-
NAVA PURE COMPACT 05 60 | 60 | 0.6 | 3 × SW30-2521 | € 6.349,-
NAVA PURE COMPACT 07 55 | 55 | 0.85 | 2 × SW30-2521 | € 5.599,-
NAVA PURE COMPACT 07 75 | 75 | 0.85 | 3 × SW30-2521 | € 6.399,-
NAVA PURE COMPACT 11 70 | 70 | 1.25 | 2 × SW30-2521 | € 5.649,-
NAVA PURE COMPACT 11 100 | 100 | 1.25 | 3 × SW30-2521 | € 6.449,-

RO membrane configuration (typical housing sizes)
SW30-2540 (standard NAVA PURE membrane length 1,200 mm): 1 membrane — 1,200 × 120 × 115 mm; 2 membranes — 1,200 × 270 × 115 mm; 3 membranes — 1,200 × 365 × 115 mm
SW30-2521 (NAVA PURE COMPACT membrane length 695 mm): 1 membrane — 695 × 120 × 115 mm; 2 membranes — 695 × 270 × 115 mm; 3 membranes — 605–695 × 365 × 115 mm (model-dependent)

Dimensions (selected)
NAVA PURE series (example configuration): Length 300 mm | Depth 150 mm | Height 200 mm
Compact component example: Length 200 mm | Depth 120 mm | Height 90 mm

Notes
Freshwater output can vary up to ±10% depending on seawater salinity and temperature. Energy consumption depends on operating pressure and may vary by up to ±10%; guideline values depend on generator/inverter capacity. Starting current is approximately five times the operating current.

Characteristics / technical specifications

• Brand: AQUAbibe
• Series / commercial model: NAVA PURE
• Type: Seawater reverse osmosis desalination system (split-design: 230V AC high-pressure pump + 12V DC feed pump)
• Freshwater output (range): approx. 35–125 l/h depending on model
• Energy consumption (typical): 0.6 kW; 0.85 kW; 1.25 kW depending on model
• RO membranes: FilmTec SW30-2540 (standard) or SW30-2521 (COMPACT)
• RO membrane housings: configurable 1–3 membranes per unit
• Included: pre-filters (20 µm & 5 µm), activated carbon filter, hoses (high-pressure and seawater/brine/freshwater), pre-assembled valves and pressure vessels, control panel, mobile electrical box
• Soft-start behavior: split-pump design reduces inverter starting load
• Price indication: prices shown excl. VAT (vary by model; see models list)
