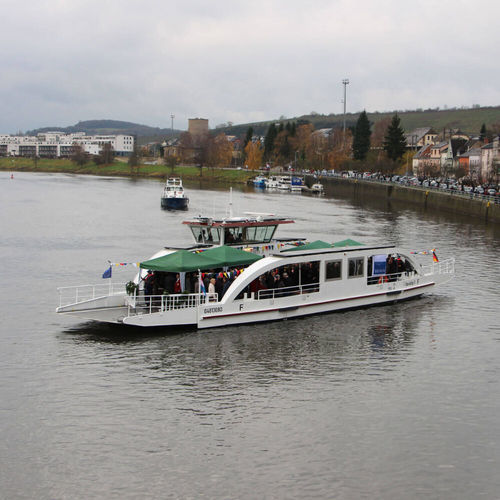

Ro-Pax passenger ferry ASF-25

roll-on/roll-offsolar powered

Overview
The ASF-25 is a fully electric ferry designed for the transport of vehicles and passengers on short to medium routes. Its silent, zero-emission propulsion provides a smooth transit suitable for sensitive environments such as protected natural areas.

Additional information
Integrated solar modules supply the electric motors and supplement the vessel charging system during daily operation. Each unit is adapted to site-specific constraints, including bridge clearance, water depth and channel width.

Main characteristics
Length overall: 28.00 m
Beam overall: 8.90 m
Draft: 0.83 m
Air draft: 5.77 m
Service speed: 7 km/h
Maximum speed: 13 km/h

Propulsion and energy system
360° azimuth thrusters: 4 x 20 kW
Propulsion batteries: Lithium-polymer
Main bus voltage: 96 V
Certification: BinSchUO Zone 4
Solar modules: 15 x monocrystalline
Total solar power: approx. 5.4 kWp

Gallery
Photographs and technical drawings illustrate the hull layout, vehicle deck and solar module arrangement (see product gallery).

Technical specifications

• Length overall: 28.00 m
• Beam overall: 8.90 m
• Draft: 0.83 m
• Air draft: 5.77 m
• Service speed: 7 km/h
• Maximum speed: 13 km/h
• Propulsion: 4 x 20 kW 360° azimuth thrusters
• Batteries: Lithium-polymer
• Main bus voltage: 96 V
• Certification: BinSchUO Zone 4
• Solar modules: 15 x monocrystalline (~5.4 kWp)
