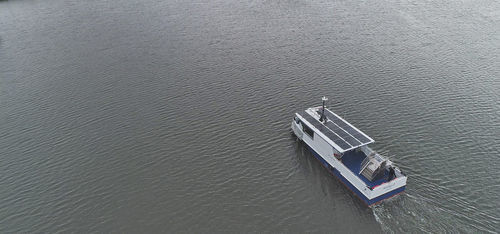

Passengers and cargo boat ASP-20

multihullelectricrigid hull

Product description
The ASP-20 is a compact, highly manoeuvrable electric passenger ferry designed for economical continuous operation in short-range services. It combines low operating costs with high energy efficiency. Integrated high-performance batteries enable full-day operation without intermediate charging. A roof-mounted solar array supports the energy supply during daytime under suitable weather conditions.
Overnight charging is provided via a shore power connection supplied from renewable sources where available. The vessel operates with zero local emissions and very low acoustic signature, suitable for professional passenger transport in coastal and inland waters.

Main features

• Overall length: 14.65 m
• Overall beam: 4.45 m
• Draft: approx. 0.95 m
• Air draft (without mast): 2.60 m
• Service speed: 8 km/h
• Top speed: 15 km/h

Propulsion and energy system

• 360° azimuth thruster: 1 × 60 kW
• Bow thruster: 1 × 20 kW
• Propulsion batteries: lithium‑polymer
• Solar modules: 13 (total area approx. 21.5 m²)
• Solar array rated power: approx. 18.72 kWp

Media

• Photo gallery with multiple views of the ASP-20
• Customer video of the naming ceremony

Technical specifications

• Overall length: 14.65 m
• Overall beam: 4.45 m
• Draft: approx. 0.95 m
• Air draft (without mast): 2.60 m
• Service speed: 8 km/h
• Top speed: 15 km/h
• 360° azimuth thruster: 1 × 60 kW
• Bow thruster: 1 × 20 kW
• Propulsion batteries: lithium‑polymer
• Solar modules: 13
• Solar module area: approx. 21.5 m²
• Solar array rated power: approx. 18.72 kWp
