Depth transducer TM260
water temperatureacousticfor boats

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boats
Other characteristics
ultrasonic, transom-mount

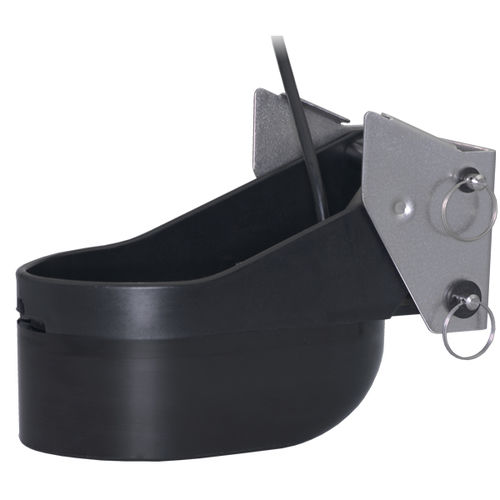

The TM260 comes with a rugged stainless-steel mounting bracket that is easy to install and has a streamlined shape. The performance of Airmar’s "1 kW, 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat. Features: Depth and fast-response water-temperature sensor 1 kW Dual-frequency element: -50 kHz with a 19° beamwidth for depth performance to 800 m (2,600') -200 kHz with a 6° beamwidth for depth performance to 294 m (1,000') Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders Urethane transom transducer for installation on outboard and I/O powered boats Stainless steel kick-up bracket locks in the “up” position and will not damage the transom Also available as bronze thru-hull (B260), stainless steel thru-hull (SS260) and in-hull (M260) models Exclusive Xducer ID® technology Specifications: Weight: 4 kg (8.9 lb.) Recommended Boat Length: 10 m (32') and up Hull Deadrise: Up to 28° Transom Angle: 3° to 21° Acoustic Window: Urethane Speed Performance: Up to 35 MPH
