Depth transducer P58 TRIDUCER® multisensor
water temperatureacousticspeed

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic, speed
Application domain
for boat
Other characteristics
ultrasonic, transom-mount

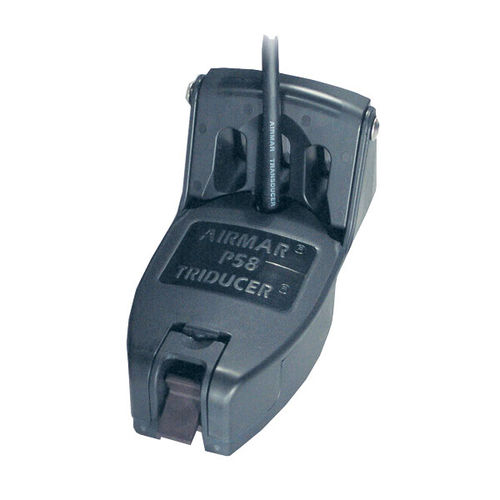

The P58 TRIDUCER® Multisensor is Airmar’s most affordable, dual-frequency, 50/200 kHz, transom-mount design. It combines depth, speed, and temperature functions in one housing. Few parts make installation simple, and its compact size is attractive to small-boat owners. Our square-blade paddlewheel has good linearity and is quite accurate throughout the speed range. Features: Depth, speed, and temperature 600 W Dual-frequency element: -50 kHz with a 45° beamwidth for depth performance to 353 m (1,200') -200 kHz with a 11° beamwidth for depth performance to 206 m (700') Sensor can be removed from bracket without tools for easy service or storage Transom-mount, release bracket protects sensor from frontal impact Chemical and impact-resistant plastic housing Specifications: Weight: 0.5 kg (1.1 lb.) Recommended Boat Length: Up to 8 m (25') Transom Angle: 3° to 20° Acoustic Window: Layered plastic urethane (LPU) Speed Performance: Up to 44 knots (50 mph)
