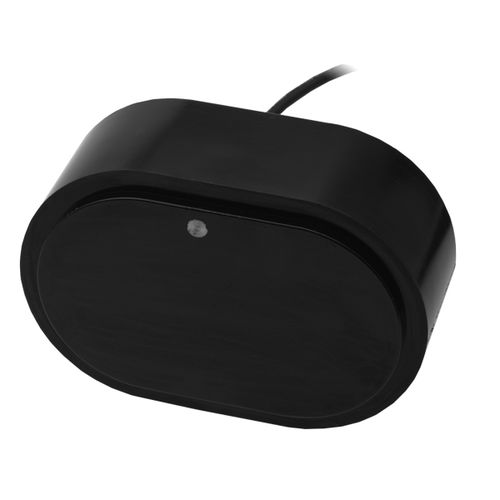

Depth transducer CM265LH
water temperatureacousticfor boat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
for boat
Other characteristics
ultrasonic, CHIRP


We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The CM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidth. This powerhouse transducer delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths. Inside the Sealcast™ CM265LH is a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow (10° to 6°) beamwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure. Features: Depth and fast-response water-temperature sensor 1 kW of power for great deep-water performance Low frequency: 42 to 65 kHz -25° to 16° beamwidth -Maximum depth of 914 m (3,000') High frequency: 130 to 210 kHz -10° to 6° beamwidth -Maximum depth of 304 m (1,000') 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Sealcast, seamless, urethane housing for long product life Curved-edge design for wet-box installation Also available as transom (TM265LH), pocket/keel (PM265LH), thru-hull (B265LH), and in-hull (M265LH) mounts Exclusive Xducer ID® technology Specifications: Weight: 6.1 kg (13.4 lb.) Recommended Boat Length: 8 m (25') and above Hull Material: Metal Hull Deadrise: Accommodates any deadrise angle based on custom tank construction Acoustic Window: Urethane Transducer Element: Eight internal broadband ceramic assemblies
