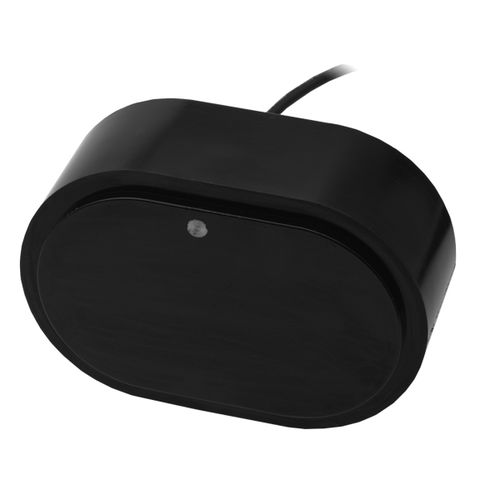

Depth transducer CM275LHW
water temperatureacousticboat

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Measured value
depth, water temperature, acoustic
Application domain
Other characteristics
ultrasonic, CHIRP


Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam, transducer options. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power support great deeper-water performance. And all this is packed into one Sealcast™ housing. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducers with wide-beam coverage. Features: Depth and fast-response water-temperature sensor 1 kW Low frequency: 42 to 65 kHz -25° to 16° beamwidth -Maximum depth of 914 m (3,000') High frequency: from 150 to 250 kHz -25° constant beamwidth -Maximum depth of 152 m (500') 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth High frequency produces superior shallow-water performance, bottom detail, and fish-target separation High wide beamwidth yields more coverage for detecting fish in the upper-water column Sealcast, seamless, urethane housing for long product life Curved-edge design for wet-box installation Also available as thru-hull (B275LHW), transom (TM275LHW) and pocket/keel (PM275LHW) mounts Exclusive Xducer ID® technology
