- AAA WORLD-WIDE ENTERPRISES LTD.

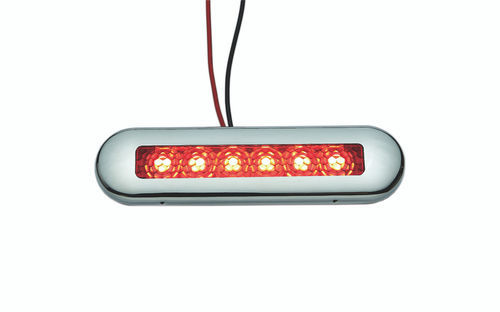

Courtesy light 00383 seriesexterioroutdoorfor boat
Add to favorites
Compare this product
Characteristics
- Type
- courtesy, outdoor, exterior
- Application domain
- for boat, marine
- Applications
- for decks
- Light source
- LED, RGBW LED
- Mounting
- flush-mount
- Material
- polycarbonate, 304 stainless steel
- Protection level
- IP67
- Finish
- stainless steel finish
- Other characteristics
- waterproof, colour changing
- Power
0.5 W
- Luminous flux
Max.: 73 lm
Min.: 7 lm
Description
Product Description
The 00383 series LED courtesy light is a flush-mount marine deck luminair designed for low-profile illumination of decks, stair risers and walkways. With compact dimensions (Ø100 x 25 mm), it integrates cleanly into fiberglass, teak or composite surfaces. The PC housing combined with a polished S.S.304 stainless steel trim ring provides corrosion-resistant construction suitable for marine applications. IP67 rated, the unit is protected against dust and temporary immersion. It features six RGBW LEDs and an integrated PCB driver, operating at 12 V DC with 0.5 W per cycle for efficient accent or continuous lighting.
Key Features
Ordering Information
Technical Specifications
The 00383 series LED courtesy light is a flush-mount marine deck luminair designed for low-profile illumination of decks, stair risers and walkways. With compact dimensions (Ø100 x 25 mm), it integrates cleanly into fiberglass, teak or composite surfaces. The PC housing combined with a polished S.S.304 stainless steel trim ring provides corrosion-resistant construction suitable for marine applications. IP67 rated, the unit is protected against dust and temporary immersion. It features six RGBW LEDs and an integrated PCB driver, operating at 12 V DC with 0.5 W per cycle for efficient accent or continuous lighting.
Key Features
- PC housing with polished S.S.304 stainless steel trim ring
- IP67 waterproof and dust-tight
- Built-in PCB driver, 0.5 W per cycle
- Available color options: Blue, Daylight White, RGBW
Ordering Information
- 00383-SSBU: Blue (14 lm)
- 00383-SSWH: Daylight White (73 lm)
- 00383-SSRGBW: RGBW — White 43 lm / Green 27 lm / Blue 7 lm / Red 7 lm
- Packing: 320 units per carton
Technical Specifications
- Series: 00383
- SKU variants: 00383-SSBU, 00383-SSWH, 00383-SSRGBW
- Mounting: Flush mount
- Dimensions: Ø100 x 25 mm
- Housing material: PC (polycarbonate)
- Trim ring material: Polished S.S.304 stainless steel
- Ingress protection: IP67
- LEDs: 6 RGBW LEDs
- Driver: Built-in PCB driver
- Nominal voltage: 12 V DC
- Power consumption: 0.5 W per cycle
- Lumen output (by variant): Blue 14 lm; Daylight White 73 lm; RGBW — White 43 lm / Green 27 lm / Blue 7 lm / Red 7 lm
- Packing quantity: 320 per carton
