Toggles

Weight: 32.00 g Wire diameter: 3 mm Pin diam: 6.50 mm W: 14.00 mm WCL Reduct: 27.00 mm X: 7.50 mm Y: 7.00 mm Z: 12.00 mm

Weight: 45.00 g WireDiam: 4 mm PinDiam: 8.00 mm WCL reduct: 31 mm

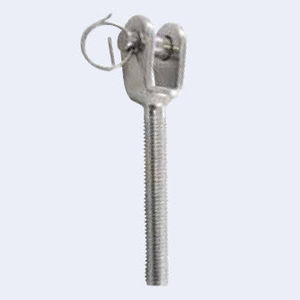

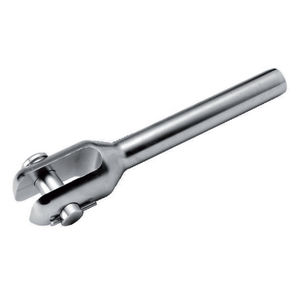

Welded forks with thread and pin forrigging screws, inside thread parts or other terminations. Available with left handed and right handed thread -also UNF sizes on request.

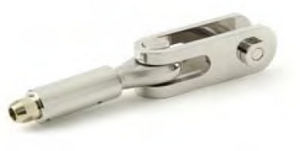

For lengthening the wire, or adding flexibility to installations, the toggles can be applied. Where a structure is subjected to stress the use of a toggle is essential as it can minimise the fatigue risk.

... end fittings, they are normally attached to pre drilled anchor plates or steel constructions. Also used in combination with toggles, eyes or U-bolts.

Stainless steel toggle 5mm pin dia working length 25mm

Sta-Lok Long Reach Strap Left Hand Threaded StrapToggle End. Full Articulation in two planes. Suitable for all Sta-Lok turnbuckles. Thread sizes ¼ to 7/8 UNF. Supplied with pin and split pin.

Double jaw toggles are used with the same pin sizes as marine eyes and mechanical end fittings on 1 x 19 stainless wire. These high quality stainless toggles permit proper "universal" motion in rigging ...

New Specification – 17-4PH Stainless Steel Replacing Cad-Plated Carbon Steel Same as NAS645 / Replaces AN161 The MS21252C Stainless Steel also available in 4130 HT-CADMIUM PLATED adjustable fork end for clip locking turnbuckle ...

Our strap toggles are bent from high quality 316L stainless plates with the same degree of care as our stainless steel lifting shackles, resulting in a reliable and consistent product. Bar toggles are ...

Suncor Stainless manufactures the 360 degree anchor swivel. Our stainless steel chain and anchor swivel shackle is precision cast and made from grade 17-4 PH stainless steel for maximum corrosion resistance and durability. It swivels ...

... CR4 inboard ends.The pins are machined of high strength 17-4 PH stainless steel, and the toggles are investment cast of the same high strength material. The toggles are available in 1/2" and 5/8". Custom ...
