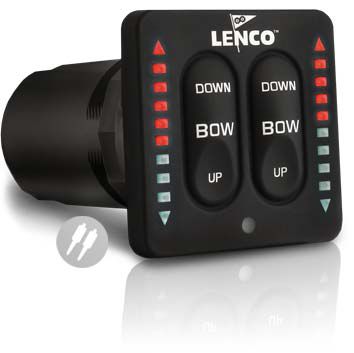

Boat switch 15171-001
waterprooffor trim tab systemsLED

boat switch
boat switch
boat switch
boat switch
boat switch
boat switch
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Type
waterproof
Applications
for trim tab systems
Other characteristics
LED

Description

Complete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel. LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions. Features Include Simple, quick, Plug & Play installation Instant response Built-in retractor Low profile design Self-contained key pad with waterproof Plug & Play Deutsch connectors Wiring harness length 30" (76.2 cm) from the back of the switch bezel 36" power pigtail 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75" 4.08" clearance required from the back of the key pad's mounting location 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times Photo Eye for optimum viewing in all light conditions Backlit key pad for optimum viewing at night
