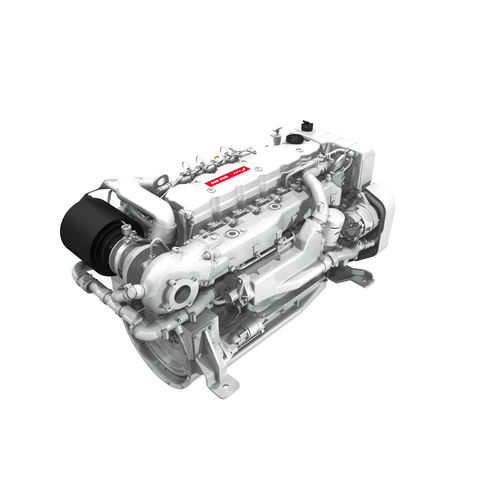

Inboard engine N60 400
dieselboatingcommercial

inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating, commercial
Technology
turbocharged, common-rail, mechanical fuel injection
Power

270 ch, 330 ch, 370 ch, 400 ch
(270 hp, 330 hp, 370 hp, 400 hp)

Displacement

6 l
(2 gal)

Number of cylinders

4 unit

Engine speed

3,000 rpm
(18,850 rad.min-1)

Bore

102 mm
(4 in)

Stroke

120 mm
(4.7 in)

Length

1,072 mm
(42 in)

Width

739 mm
(29 in)

Height

778 mm
(31 in)

Weight

595 kg
(1,312 lb)

Description

"Compact and cost-effective Short load response time High power density with minimum fuel consumption Up to 600 hours service intervals (among the best in the category) Description The NEF Series is the widest among FPT Industrial engine families for pleasure and professional marine duties, with four different displacements available in mechanical and electronic version. “Professional range” NEF engines are characterized both by advanced mechanical fuel injection and electronic common rail systems, and provide high, constant power and torque delivery, reliability, low fuel and servicing costs. Keel-cooled versions are also available. “Pleasure range” NEF engines offer state-of-the-art Diesel technology (Common Rail and electronic systems, 4 valves/cylinder) and ensure high performance, light weight and compact design – together with low smoke, noise and vibration. They suit cruisers and yachts up to 12 meters. The NEF Series is offered in sport, high-performance, light-, medium- and heavy-duty versions, and can be customized on request. Options include electronic remote control, monitoring systems and compliance to international emission standards as IMO MARPOL, EU-RCD, EU-IWV, USA-EPA Recreational & Commercial and Propulsion homologation as RINA.​ SPECIFICATIONS Thermodynamic cycle: Diesel 4 stroke Air handling: TCA Cylinders arrangement: 6L Bore x Stroke: millimeters 102 x 120 Total displacement: liters 5.9 Valves per cylinder: number 4 Cooling System: liquid Direction of Rotation (viewed facing flywheel): CCW Engine management: by EDC (Electronic Diesel Control) Injection System: ECR"
