The LT-I toilet is designed for installation above or below the waterline. In case that it is installed below the waterline, then it is necessary to use an antisiphon loop for preventing the water inflow into the interior. Furthermore, the toilet can be installed with the pump either at the right or the left side of the porcelain bowl. Its valves have been designed for longer and more reliable service life. The components and spare parts of LT-I toilet may also be used to replace Jabsco and Matromarine toilets. Additionally, the toilet's drain plug has been designed with a quick fit locking mechanism for easier and more effective drainage of the toilet. All the parts are made of corrosion resistant materials.
|
|
TOTAL TIME REQUIRED
ECO 10 s
NORMAL 19 s
WATER CONSUMPTION
ECO 1,2 l
NORMAL 2,2 l
PUMPING HEIGHT
ECO 3 m
NORMAL 3 m
EMPTY 3 m
HORIZONTAL PUMPING DISTANCE
ECO 30 m
NORMAL 30 m
EMPTY 30 m
MINIMUM PRESSURE 1,7 bar
CURRENT CONSUMPTION
12 V (260 W) 20A
24 V (260 W) 10 A
ELECTRICITY CONSUMPTION
Elec 1,73.10-2 A.h (12 V)
1,02.10-2 A.h (24 V)
Elec 3,10.10-2 A.h (12 V)
2,02.10-2 A.h (24 V)
ELECTRONIC CONTROL
EMPTY
Operates continuously until the button EMPTY is released
|
|
TOTAL TIME REQUIRED
ECO 10 s
NORMAL 19 s
WATER CONSUMPTION
ECO 1,2 l
NORMAL 2,2 l
PUMPING HEIGHT
ECO 3 m
NORMAL 3 m
EMPTY 3 m
HORIZONTAL PUMPING DISTANCE
ECO 30 m
NORMAL 30 m
EMPTY 30 m
MINIMUM PRESSURE 1,7 bar
CURRENT CONSUMPTION
12 V (260 W) 20A
24 V (260 W) 10 A
ELECTRICITY CONSUMPTION
Elec 1,73.10-2 A.h (12 V)
1,02.10-2 A.h (24 V)
Elec 3,10.10-2 A.h (12 V)
2,02.10-2 A.h (24 V)
ELECTRONIC CONTROL
EMPTY
Operates continuously until the button EMPTY is released .
|
|
|
|
|
|
|
AquaT%u2122 Marine toilets
Available in a wide variety of different versions marketed under three basic models - standard and premium electric-powered or manual - the AquaT%u2122 marine toilet has been designed to meet virtually every conceivable lavatory installation situation onboard.
Priced competitively, the fine finish and well thought-through design of these toilets is remarkable. Made from white vitreous porcelain, and with corrosion resistant parts throughout, the AquaT%u2122 marine toilet, is quiet, robust and easy to clean.
Using the AquaT%u2122 marine toilet, water inlet and outlet takes place in two distinct steps. First the bowl is filled with clear water, and then the waste is flushed, leaving the bowl empty and clean, with no liquids sloshing about. Naturally, automatic back-flow prevention is incorporated into the design.
Most models can be ordered with standard, bevelled or low profiles in order to fit almost any hull and bulkhead configuration, and all are available in either compact or comfort versions so you can outfit your marine lavatory with the perfect-sized toilet, no matter what the layout.
Power models are shipped with well-proven Aqua Jet diaphragm pumps in either 12V or 24V versions, and the manual version incorporates an ergonomically designed, hand-powered piston pump that can be mounted for either left-hand or right-hand use.
It is probably fair to think of most toilets as commonplace products, but look at the features and you are sure to see that the AquaT%u2122 is far from ordinary. Quiet, hygienic and reliable, the AquaT%u2122 marine toilet is perfect for almost any marine toilet room.
|
|
|
|
|
|
|
AquaT%u2122 Marine toilets
Available in a wide variety of different versions marketed under three basic models - standard and premium electric-powered or manual - the AquaT%u2122 marine toilet has been designed to meet virtually every conceivable lavatory installation situation onboard.
Priced competitively, the fine finish and well thought-through design of these toilets is remarkable. Made from white vitreous porcelain, and with corrosion resistant parts throughout, the AquaT%u2122 marine toilet, is quiet, robust and easy to clean.
Using the AquaT%u2122 marine toilet, water inlet and outlet takes place in two distinct steps. First the bowl is filled with clear water, and then the waste is flushed, leaving the bowl empty and clean, with no liquids sloshing about. Naturally, automatic back-flow prevention is incorporated into the design.
Most models can be ordered with standard, bevelled or low profiles in order to fit almost any hull and bulkhead configuration, and all are available in either compact or comfort versions so you can outfit your marine lavatory with the perfect-sized toilet, no matter what the layout.
Power models are shipped with well-proven Aqua Jet diaphragm pumps in either 12V or 24V versions, and the manual version incorporates an ergonomically designed, hand-powered piston pump that can be mounted for either left-hand or right-hand use.
It is probably fair to think of most toilets as commonplace products, but look at the features and you are sure to see that the AquaT%u2122 is far from ordinary. Quiet, hygienic and reliable, the AquaT%u2122 marine toilet is perfect for almost any marine toilet room.
|
|
Dometic portable toilets – home-like comfort
Small, but a big performer: handy and spacesaving, the new 970 series adds hygienic comfort to your boat. Many sensible functions are contained in the smallest possible space to ensure you enjoy home-like comfort on your cruise.
› Portable toilet in two sizes and two colours
› Push-button control for powerful flushing with less pumping
› Extra-strong 360° pressure flush for effective cleaning
› 8.7-litre flush water tank – sufficient for 27 flushes
› Safety through overfill protection and tank level indicator
› Ingenious disposal system: extra-long, pivoting spout and vent openings for clean, splash-free discharge
› Useful accessories: spare tanks, discharge kits, fixing kit
|
|
TOTAL TIME REQUIRED
ECO 10 s
NORMAL 19 s
WATER CONSUMPTION
ECO 1,2 l
NORMAL 2,2 l
PUMPING HEIGHT
ECO 3 m
NORMAL 3 m
EMPTY 3 m
HORIZONTAL PUMPING DISTANCE
ECO 30 m
NORMAL 30 m
EMPTY 30 m
MINIMUM PRESSURE 1,7 bar
CURRENT CONSUMPTION
12 V (260 W) 20A
24 V (260 W) 10 A
ELECTRICITY CONSUMPTION
Elec 1,73.10-2 A.h (12 V)
1,02.10-2 A.h (24 V)
Elec 3,10.10-2 A.h (12 V)
2,02.10-2 A.h (24 V)
ELECTRONIC CONTROL
EMPTY
Operates continuously until the button EMPTY is released
|
|
TOTAL TIME REQUIRED
ECO 10 s
NORMAL 19 s
WATER CONSUMPTION
ECO 1,2 l
NORMAL 2,2 l
PUMPING HEIGHT
ECO 3 m
NORMAL 3 m
EMPTY 3 m
HORIZONTAL PUMPING DISTANCE
ECO 30 m
NORMAL 30 m
EMPTY 30 m
MINIMUM PRESSURE 1,7 bar
CURRENT CONSUMPTION
12 V (260 W) 20A
24 V (260 W) 10 A
ELECTRICITY CONSUMPTION
Elec 1,73.10-2 A.h (12 V)
1,02.10-2 A.h (24 V)
Elec 3,10.10-2 A.h (12 V)
2,02.10-2 A.h (24 V)
ELECTRONIC CONTROL
EMPTY
Operates continuously until the button EMPTY is released
|
|
TOTAL TIME REQUIRED
ECO 10 s
NORMAL 19 s
WATER CONSUMPTION
ECO 1,2 l
NORMAL 2,2 l
PUMPING HEIGHT
ECO 3 m
NORMAL 3 m
EMPTY 3 m
HORIZONTAL PUMPING DISTANCE
ECO 30 m
NORMAL 30 m
EMPTY 30 m
MINIMUM PRESSURE 1,7 bar
CURRENT CONSUMPTION
12 V (260 W) 20A
24 V (260 W) 10 A
ELECTRICITY CONSUMPTION
Elec 1,73.10-2 A.h (12 V)
1,02.10-2 A.h (24 V)
Elec 3,10.10-2 A.h (12 V)
2,02.10-2 A.h (24 V)
ELECTRONIC CONTROL
EMPTY
Operates continuously until the button EMPTY is released
|
|
|
Reliability, compact size and the light weight of the Holt Nautos marine toilet makes it the correct choice for the small to medium boat. Durable and easy to clean with plastic cover and seat. All pump and base parts sold separately for maintenance.
|
|
|
|
|
|
|
AquaT%u2122 Marine toilets
Available in a wide variety of different versions marketed under three basic models - standard and premium electric-powered or manual - the AquaT%u2122 marine toilet has been designed to meet virtually every conceivable lavatory installation situation onboard.
Priced competitively, the fine finish and well thought-through design of these toilets is remarkable. Made from white vitreous porcelain, and with corrosion resistant parts throughout, the AquaT%u2122 marine toilet, is quiet, robust and easy to clean.
Using the AquaT%u2122 marine toilet, water inlet and outlet takes place in two distinct steps. First the bowl is filled with clear water, and then the waste is flushed, leaving the bowl empty and clean, with no liquids sloshing about. Naturally, automatic back-flow prevention is incorporated into the design.
Most models can be ordered with standard, bevelled or low profiles in order to fit almost any hull and bulkhead configuration, and all are available in either compact or comfort versions so you can outfit your marine lavatory with the perfect-sized toilet, no matter what the layout.
Power models are shipped with well-proven Aqua Jet diaphragm pumps in either 12V or 24V versions, and the manual version incorporates an ergonomically designed, hand-powered piston pump that can be mounted for either left-hand or right-hand use.
It is probably fair to think of most toilets as commonplace products, but look at the features and you are sure to see that the AquaT%u2122 is far from ordinary. Quiet, hygienic and reliable, the AquaT%u2122 marine toilet is perfect for almost any marine toilet room.
Model No Description Net Weight A B C D E F
80-47229-01 Compact bowl 9,6 kg 345 650 215 425 450 170
80-47230-01 Comfort bowl 11 kg 340 705 275 490 470 185
|
|
The Y 10 is an electrically operated toilet with chopper pump and its description is almost the same as the one of the Y 8. This marine toilet has its own rinse water pump. An impeller pump is built into the pump unit. When the pedal is operated rinse water is pumped and the excrements are pumped away at the same time. This toilet can pump up rinse water up to 1 metre above water line and its vertical rise is 5 metres. Therefore it is ideal for higher placed sewage tanks. A cover for the pump unit can be delivered additionally (lid set p. 14). The Y10 is made of seawater resistant materials.
Fields of application: Sailing and motor yachts, passenger and professional ships, especially state-runned ships
Rinse water: Inlet ¾ ", outlet 1" or 1 ½"
Delivery head: 5 m., Suction head: 1 m.
|
|
|
The Exalto Mariner toilets are nicely engineered and very cost effective. The toilets need to be connected to a pressurised water system for flushing. A solenoid valve to control the water supply is fitted as a standard. The Mariner toilets come complete with a control panel with an integrated flushing program. This control panel offers the choice to flush the toilet with eight (!) different water quantities. Very useful with a limited availability of flushing water or limited waste tank capacity. By simply pressing the related button, the toilet is flushed and the waste pumped out. You can also pump without flushing water. The toilet has a white porcelain bowl and a white seat and coated cover. The pump is made of ABS with stainless steel cutters, making the toilet suitable for both fresh and salt water. The pump has a reversible rotation, so any clogging is put right quickly and easily.
|
|
- Very quiet flush cycle - like a household toilet
- Single button flush actuator - with dual function water level control switch
- Can be plumbed to any pressurized water system that can provide a 3-1/2 GPM (13.5 LPM) flow rate
- Water control solenoid valve with anti-siphon breaker to prevent contamination of potable water supply
- White vitreous china bowl available in compact or comfortable household size
- Baked enamel seat & cover
- High capacity waste macerator and bowl discharge pump
|
|
- White Vitreous China Bowl Available in Two Sizes
- Baked Enamel Seat & Cover in Compact or Household Size
- Flexible Impeller Flush Pump
- Permanent Magnet Type Motor, Fully Enclosed, with Stainless Steel Shaft
- High Capacity Macerator and Bowl Scavenger Pump
- Built-in Back Flow Preventer
- All Corrosion Resistant Material for Marine Use
|
|
NEW 14" Deluxe Flush Toilet, part of the Deluxe Flush Range
Features:
- Space saving stylish design
- Regular household size seat
- Virtually silent operation for undisturbed sleep
- User selectable choice of "one touch" flush cycles for minimal water usage - a "Quick Flush" uses less than 1 quart (1 litre)
- Owner selectable choice of leaving bowl wet or dry after use
- Fresh or raw water rinse models
- Non-clogging large bore flush pump macerates waste
- Uses less than 1.0 amp/hour per day
- ISO 8846 MARINE - Ignition Protection
- Crevice free contours for added cleanliness and hygiene
- All plumbing and wiring easily concealed
- Angled or Vertical back vitreous china bowl
|
|
All VETUS toilets are equipped with an electric pump, which will macerate the contents and evacuate it in about 7 seconds. They are available in 12 or 24 Volt DC versions or alternatively, for 120 or 230 Volt AC (not model SMT02). VETUS toilets are both quick and quiet in operation (61dB(A)).
The main features of VETUS electric toilets are:
• A stylish and ergonomic porcelain bowl with an easy clean seat and lid of similar dimensions to a normal domestic toilet.
• The internal diameter of the outlet pipe is only 19 mm. This means that the toilet can be located in any convenient position aboard and can be connected simply to the waste water tank, using VETUS sanitation hose, type SAHOSE (see page 86).
• All 12 and 24 volt VETUS electric toilets have the following specifications:
- Models WCL, WCS and SMTO, have a combined pump/ macerator unit with a diameter of 96 mm. Model HATO has a separate pump and a 98 mm diameter macerator.
|
|

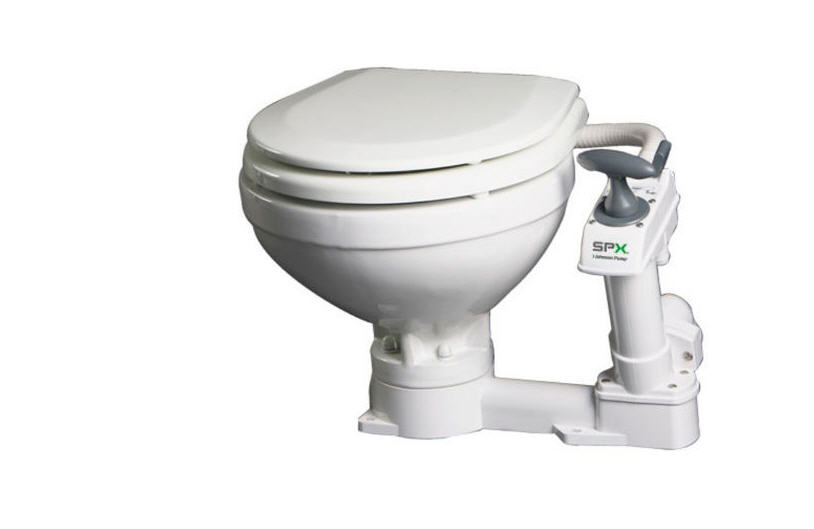

Jabsco is the world's largest manufacturer of small craft marine toilet systems and we have applied all our experience into our latest Manual Toilet refining the design that is used by nearly all boatbuilders worldwide.For extra safety and peace of mind the intuitive, simple to use, Twist 'n' Lock action handle guards against syphonic flooding and waste backflow. With one easy 90° turn of the handle, the lock is applied. Turning the handle back to the natural operating position opens the lock again.
Features::
- Twist 'n' Lock safety handle and flush control lever.
- Powerful swirl action for efficient flushing.
- Full sized external seal housing allows quick clean seal replacement and instant access to pump cylinder.
- Powerful Self-priming pump for above or below waterline installation.
- Crevice free contours and smooth mouldings for added hygiene.
- Automatic vacuum breaker for easier pumping.
- Angled pump housing and long stroke for ease of installation.
|
|
Manual Toilets
Jabsco is the world's largest manufacturer of small craft marine toilet systems and we have applied all our experience into our latest Manual Toilet refining the design that is used by nearly all boatbuilders worldwide.For extra safety and peace of mind the intuitive, simple to use, Twist 'n' Lock action handle guards against syphonic flooding and waste backflow. With one easy 90° turn of the handle, the lock is applied. Turning the handle back to the natural operating position opens the lock again.
|
|
Make a Statement without Saying a Word
The X-Light was designed for high-performance boats where weight savings is critical. Other features include:
-Modern styling with minimalist trends
-Carbon fiber structure guarantees incomparable strength and lightness
-Tremendous weight savings
-37-40 pounds (17-18 Kg) less than Silence
-Automatic flush cycles with two-button control (Marine) or one-button control (RV)
-One-button (RV) or two-button control (Marine)
-Titanium hinges for maximum strength and weight savings
-Patented centrifugal evacuation mechanism is clog-free
Our marine permanent toilets are water-tested and designed to save space for boaters. From the Headmate manual-flush toilet to the electric-flush EasyFit, Thetford's Tecma line is a leader in marine sanitation.
|
|
Marine Toilet - Electric Macerating Toilet for Ease of Use
The Newport represents state-of-the-art marine sanitation. Engineered for years of reliable, trouble-free service in virtually every application. Other features include:
-Compact design
-A single, convenient foot pedal controls all functions
-Saves water - uses approx. 1 pint of water per flush
-Fewer holding tank pump-outs
-Large clog-free discharge valve
-Beautiful china bowl; classic wood seat & cover
-Available with either side- or rear-mounted motor
Our marine permanent toilets are water-tested and designed to save space for boaters. From the Headmate manual-flush toilet to the electric-flush EasyFit, Thetford's Tecma line is a leader in marine sanitation.
|
|
Compact Size Lets You be Prepared for Any Situation, Anywhere
This durable toilet is sanitary, odorless and leakproof. Plus, it's easy to clean!
-Bellows flush simplifies flushing fresh water to clean bowl
-Exclusive no-splash pour spout
-Removable seat and cover for easy cleaning
-Sealed valve keeps odor in holding tank
-Built-in deodorant storage (bottle included)
-Hold down kit secures toilet to deck
Whether you're a day tripper or a week-long cruiser, our marine portables are compact, convenient and designed with marine-specific features and benefits. Thetford Marine Porta Potti - don't leave the dock without it.
|
|
Porta Potti 335
The Porta Potti 335 is a super compact portable toilet which will fit almost anywhere!
|
|
Top of the range carbon marine toilet designed for regatta and high-performance sailing boats. Extremely light in weight. The turbine pump allows flushing of waste water up to a height of 11 metres and a distance of 90 metres. Low water consumption means that the waste holding tank does not have to be emptied too often.
Features
Carbon bowl
Automatic water cycling system
Clogging prevention system
Silent operation
|
|
Wall mounted marine toilet with split system which allows for separation of the ceramic foot from the rest of the toilet, providing easy service access. The turbine pump allows flushing of waste water up to a height of 11 meters and a distance of 90 metres. Low water consumption means that the waste holding tank does not have to be emptied too often.
The Evolution can be installed either with a centralised system for multiple toilets or with a single system.
Features
White or off-white porcelain finish
Automatic water cycling system
Clogging prevention system
Silent operation
|
|
Home-like styled and sized marine toilet for larger yachts. The turbine pump allows flushing of waste water up to a height of 11 metres and a distance of 90 metres. Low water consumption means that the waste holding tank does not have to be emptied too often.
Features
White or off-white porcelain finish
Automatic water cycling system
Clogging prevention system
Silent operation
|
|
Marine toilet with porcelain bowl and a pumping device that automatically fills and empties the bowl. Can be connected to a waste holding tank, display light indicates when to empty this tank.
Saninautico can be installed either with a centralised system for more toilets or with a single system.
Features
White or off-white porcelain finish
Automatic water cycling system
Clogging prevention system
Silent operation
|
|
Marine toilet with porcelain bowl and powerful pump, for transportation of waste over long distances. Turbine drainage system grinds waste and prevents clogging. Low water consumption. Designed to be connected to waste holding tank, display light indicates when to empty this tank.
The Silence toilet can be installed with a centralised system for more toilets, or with a single system. The Silence is available in a short version for installation on a raising or in "cut" version to allow for installation against an oblique black wall.
Features
White or off-white porcelain finish
Automatic water cycling system
Clogging prevention system
Silent operation
|
|
The Largest and Most Powerful Manual Marine Toilet
Our marine permanent toilets are water-tested and designed to save space for boaters. From the Headmate manual-flush toilet to the electric-flush EasyFit, Thetford's Tecma line is a leader in marine sanitation.
From the cast bronze pump housing to the beautiful bronze handle, the Skipper delivers trouble-free operation. Other features include:
- Huge, 4" no-clog pump - pumps almost anything
- Clear the bowl with fewer strokes
- Convenient foot-pedal flush valve
- Solid cast bronze pump housing construction
- Classic wood seat and cover
|
|
|
For lighter applications, the Popular has been production engineered to significantly reduce costs while maintaining the benefits of this simple and highly effective system. It is particularly suitable for holding tank applications due to its minimal use of flushing water.
|
|
|
|
