Navi-Sailor 4000 ECDIS Multifunction Display is a flexible and redundant solution providing the mariner with a convenient task-oriented environment. Every Transas MFD workstation (WS) can be equipped with a standard set of software such as ECDIS, Radar, Conning, Chart Assistant utility and SPOS weather module giving the mariner the ability to switch between applications at the touch of a button. All aforementioned applications are running simultaneously as part of the Multifunction Display.
|
|
|
The Selesmar ECDIS is an extremely powerful navigation and information display system enabling radar video overlay. This combined with display of AIS data provides the professional mariner with the complete navigational situation on one display eliminating the need to reference and appraise information from multiple sources – charts, navigational sensors, radar, ARPA, etc.
|
|
|
CHARTPILOT 1100 - The versatile approved ECDIS Electronic Chart Display and Information System.
|
|
- Compliance with IMO Resolution. A817 and relevant regulation
- Available for vector charts and raster charts
- Adaptable for automatic track control system
- Useful functions such as radar-over-lay and nautical information display
- Superior processing as chart drawing and data management would cause comfortable operation
|
|
|

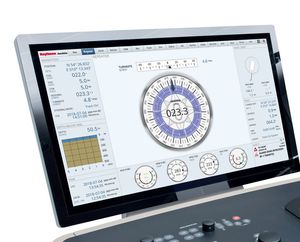

Based on a clear and easy-to-operate structure and comfortable server functionalities, the Raytheon Anschütz ECDIS offers effective support for the ship's safe navigation. Following common operator philosophy, it provides interfaces to many existing bridge systems and navigation devices. It can be configured for integration with ARPA radar, gyro compass, autopilot, AIS, echo sounder, speed log, wind speed direction sensor, position receivers and engine rpm sensors. Thus the ECDIS is able to display navigational sensor data and corresponding alarms.
|
|
|
|
|
|
|
K-Bridge Electronic Chart Display and Information System - ECDIS system, is a navigation information system that displays selected information from the electronic navigational charts with positional information from navigation sensors. The system is designed to assist the mariner in route planning and route monitoring, and by displaying additional navigation-related information.
ECDIS functions
- Radar video overlay from K-Bridge ARPA radar
- Autopilot control with simplified "curved EBL"
- "Active lights" display for simplified visual position confirmation
- Docking function provides prediction of ship movement
- Full route planning and validation functions
- Continuous monitoring of own ship in relation to route plan and waters
- Displays up to 100 Automatic Radar Plotting Aid (ARPA) tracked targets
- Displays targets and information from AIS - Automatic Identification System
- Voyage recording and replay
- EBL/VRM gives the correct range and bearing from own ship
- Remote control of K-Bridge autopilot providing track-keeping functions
- Echo sounder monitoring and recording of chart depth information
- Navtex interface
- IMO defined functions
- Type approved
|
|
|
|
|
|
|
Voyage Data Recorder with ECDIS900
Maritime Information Systems AS introduces the world's first DNV type approved VDR and S-VDR with optional ECDIS, providing, in addition to the recorded data required under IEC 61996, recording of the complete logbook database in ECDIS.
Maritime Information Systems AS introduces the world%u2019s first DNV type approved VDR and S-VDR with optional ECDIS providing , in addition to the recorded data required under IEC 61996, recording of the complete logbook data base in ECDIS. The MARIS ECDIS logbook, which complies with SOLAS regulation V/28 for records of navigational activities, provides navigator textual notes, route-monitoring information, including reference to the displayed charts, its updating, ship%u2019s track, heading, speed, alarms and acknowledgements and all other settings of the ECDIS900. The past twelve hours of this data is recorded to the hardened storage device, fixed or float free, together with the obligatory VDR or S-VDR data. The VDR2000 / S-VDR2000 replay system allows the data to be %u201Cburnt%u201D to CD rooms and in doing so an ECDIS reader heads the data such that replay reconstructs the actual ECDIS displayed data. This in addition to the display of recorded raw data, audio, VHF, radar, etc which can be displayed in raw form, as radar image or in the form of a conning display. The C.D. with recorded data may be replayed on any windows compatible PC.
|
|
|
|
|
|
|
System Featuers
Electronic charts integrated with information from various ship navigation systems including AIS, GPS, Gyrocompass, Speed Log, Wind Sensor, Echo Sounder and more.
Collision prevention algorithms minimize human error.
Data logging and playback functionality.
Complies with IMO Resolutions A.817 (19) and A.694 (17), IMO Resolution SC.64 (67), Annex5, IHO S-57 and S-52 Standards, IEC 61174 and IEC 61162.
Type approved by DNV
Navigational Functions
Interfaces with ship%u2019s navigational equipment to provide all necessary navigational information.
Route planning and monitoring capabilities, including automatic navigation assistance.
AIS Integration
AIS targets displayed on-screen including vessel info, position and course tracking.
Electronic Charts
Supports S-57 (Official IHO standard ENC vector charts) and C-MAP CM93/3 chart formats.
Easy and simple chart updating using direct Internet connection, Email or offline updating.
Chart display features according to S-52 presentation library.
Displays general and hazard information for chart objects.
Safety Features
Vessel collision prediction, monitoring and alarm for all AIS targets.
Vessel collision prevention utilizing "what-if" algorithm to evaluate course correction solutions.
Alarm when approaching dangerous areas such as shallow waters, navigational hazards etc.
"Man Overboard" mode for single-click emergency operation.
Totem ECDIS Workstation
Type-approved marine PC with a high-resolution monitor
Designed to operate in harsh maritime environments
Flexible and expandable configuration
Up to 8 serial ports %u2013 capable to interface navigation equipment
Option: navigation console
|
|
| ... products without information |
| |
The MULTIPILOT 1100 - A unique navigation system combining
radar, ECDIS, conning & automatic steering control as the most
compact solution available in the marine market
|
|
|
Our multifunctional systems are set up to provide all information for precise, safe and easy operation. The workstations combine and integrate the functions of IMO radar, ECDIS and customised centralised navigation data display at one dedicated position. This enables full navigation data access at any place on the integrated bridge. The multifunctional systems ensure excellent, reliable performance under all conditions, supported throughout the lifetime of your vessel with a focus on lowest life cycle costs.
|
|
FURUNO ECDIS FEA-2107 and FEA-2807 are designed to comply with the latest standards and regulations set by IMO, IHO, and IEC. The FEA-2107 and the FEA-2807 can utilize ENC (S57 Edition 3), ARCS RASTER CHARTS and C-Map CM93 Edition 3 to deliver global chart coverage.
Utilizing state-of-the-art technology, the FEA-2107/2807 delivers a vast array of advantages to the operators from high-speed, stress-free data processing of chart and navigation data including ARPA and AIS to sophisticated alarm signalling. When planning the voyage route, the quick route profile calculation and voyage optimization are conducted. The FEA-2107/2807, in combination with autopilot, performs TCS (Track Control System), allowing automatic steering in a variety of situations ranging from sailing through narrow straits to transoceanic voyage. Huge amount of navigation data, actions taken and performance of the whole system can be continuously monitored during the course of voyage.
|
|
-Compliance with IMO performance standards
The X / S-band, 2-unit / 3-unit, 25 / 30kW conforms to IMO performance standards.
-23.1-inch color TFT display with high resolution.
-Enhanced Performance and Functionality
-Effective monitoring to prevent collision and grounding
-System construction featuring easy operation
-ARPA function: auto-acquisition and tracking up to 50 targets
-High sensitivity scanner
-Full Inter-switch Function (Option)
-Self-diagnostic / program capacity
-Bridge system accommodation
|
|
... see all the products in the category
Ship RADAR
|
The enhanced Simrad CS68 ECDIS (Electronic Chart Display and Information System) features robust, reliable, proven technology used by professionals. The Simrad CS68 is easy to install, operate and maintain and has a sleek, modern design.
Simrad CS68 ECDIS has been in the market for many years and is renowned worldwide as being a 'best in class' professional electronic navigation system. A recently completed upgrade programme has added a range of new safety and navigation features.
|
|
| ... products without information |
| |
The BPM and BQM Displays was developed to fulfill the maritime environmental requirements. Selected electronic components, from the full milled aluminum front bezel, galvanic treated housing, are only some of the highlights of this new product family. The BPM and BQM Displays corresponds with the maritime approvals, like: ECDIS Edition 4, IEC61174 und EN60945.
Features:
The modular cabinet concept allows a wide spectrum of configuration possibilities. As standard we offer aluminum front bezels with black finish (RAL 9005). The LCD Panel are protected with a 3 mm coated mineral glass pane. Front handles, buzzer or touch screen are available options.
The aluminum chassis are available with an integrated universal power supply or with integrated wide-range DC/DC converter modules. The power and interface connectors are mechanically protected.
|
|
|
|
