model 3070 "my DOG"
"my DOG" was developed to satisfying increasing customer requests for a light and compact accessory that is easy to install on the stern platform. The crane is constructed in varnished AISI 316 stainless steel with a fibreglass fairing and is composed of four sections: two swivel sections (the first folds closed over the other) and two telescopic elements. Two versions are available with standard 359° rotation and a winch capable of lifting 300 kg (upgradable to 400 or 500 kg upon request).
|
|
model 3120
With fixed or mobile hoist
Telescopic ceiling crane for installation inside the garage constructed in polished AISI 316 stainless steel. In addition to the version with a fixed hoist, a customized travelling hoist may be requested. Both have a standard load capacity of 800 lbs or an optional load capacity of 1100 lbs.
|
|
model 3051
Lifts up to 500 kg
Varnished telescopic slewing crane ideal for box or garage installation on small - medium size boats. This model features standard 90° clockwiserotation powered by a hydraulic cylinder, which can be upgraded upon request to 359° rotation powered by a rotary actuator and is available in four lengths (from 3 to 4,5 metres) with a standard lifting capacity of 300 kg (500 optional).
|
|
model 3060 GALACTICA
Maximum reach of 256 inches with a load capacity of up to 2500 kg
Telescopic flybridge slewing crane ideal for super-yachts featuring a fibreglass fairing that encompasses the power units at the base. The arm can be extended to over 7 metres with a load capacity ranging from a standard 2.000 kg to top-of-the-range 2.500 kg. A varnished version without the fibreglass fairing is also available (model 3061).
|
|
Davit G 326 “MAGIC”
Telescopic with hydraulic movement of the raise, rotation and partial extension of the arm. Prolongation of the arm by manually extendable telescopic tubes. structure in stainless steel with NCL casing. Complete with hydraulic power pack and ergonomic cable remote control.
|
|
"COMMODORE LINE"
telescopic davit with hydraulic rotation, raising, arm extension and cable rolling for charge lifting. Powder coated stainless steel
structure. Complete with hydraulic power unit.
|
|
|
Simpson Davits and have been developing products to improve on the traditional davit for many years. The lastest result is the new Series 8 Davit, improving the well proven design of the established Series 7 Davit, with an improved gearbox assembly and different finishing options.
|
|
Nautical Structures’ Hydraulic davit system represent the current state of the art in tender-handling equipment. Compare the features of our davit against any other and you will find the performance and value of this equipment unsurpassed.
The davit features a generous ten-and-a-half-foot boom, capable of being loaded to its full safe working load capacity in any position without restriction. Operational safety is the prime focus in our engineered design. Virtually silent-operating, our Hydraulic Linear Winch, a totally non-fouling winch system reflects the innovation and inherent safe operating characteristics built into our davit system.
|
|
| ... products without information |
| |
|
The group name of Rms.-type rescue boat davits represents the simplest executions of slewing cranes for rescue boats available; with manually driven slewing features. The group name of Rhs.-type rescue boat davits represents the executions of slewing cranes for rescue boats with hydraulically driven slewing features. These and other systems are available upon request. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
|
The group name of Rhp.HC-type davits represents the A-frame type of davit systems for work boats and fast rescue boats, with turning-out on hydraulic power. The systems are very low-build and combine a low weight with an extreme low centre of gravity. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
|
The group name of Rhp.HC-type davits represents the A-frame type of davit systems for work boats and fast rescue boats, with turning-out on hydraulic power. The systems are very low-build and combine a low weight with an extreme low centre of gravity. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
|

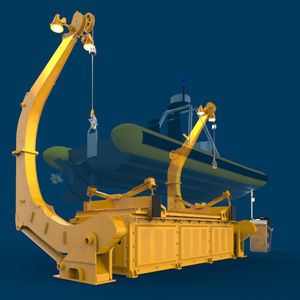

The Norsafe NDA luffing davit is specifically designed for safe and efficient launch and retrieval of rescue boats. It is intended for long term, reliable operation in harsh and hazardous marine and offshore environments. The davit system is designed in accordance with latest Solas and IMO requirements.
|
|
|
The group name of Rsp.O-type davits represents the offshore cantilever group of davit systems for rescue boats; davits in fixed position. Eventhough highly standardised, the Rsp.O systems are available upon request only. The systems are designed in a component-fashion, allowing transportation to any site in containers, where they can be easily assembled. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
|
The group name of Rhp.-type davits represents the very low-build type of davit systems for rescue boats; with turning out on hydraulic power. The Rhp. systems are available upon request only. The systems are very low-build and combine a low weight with an extreme low centre of gravity. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
Rescue boat davits
TTS Marine Cranes is a supplier of single point davits for life saving equipment according to SOLAS (LSA). TTS has choosen DNV as a Notified Body and the standard davits are supplied with EC Type-Examination Certificate. TTS is specialized in creating solutions to meet your requirements and can also offer davit and boat as a complete package.
|
|

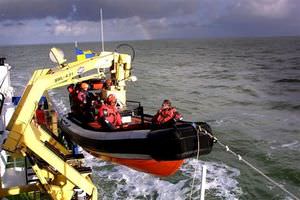

The NED-DECK MARINE hydraulic pivoting davits have been designed for long time operation under adverse and extreme conditions in a highly corrosive marine environment.
The hydraulic pivoting davits of the PRH series are so-called “plug-in and play units” all guaranteeing easy installation on board.
The PRH davit is a freestanding deck mounted davit consisting of a base frame, davit arm, cylinders, winch and hydraulic power pack unit.
The system has been designed to meet the latest IMO requirements and is suitable for safe and efficient launching and recovery of a fully manned fast rescue boat even under severe and adverse weather conditions (wind force 6 on the Beaufort-scale, in association with a significant wave height of at least 3 m).
The PRH series are all provided with a constant wire tensioning system and hydro-pneumatic shock absorber.
|
|
FPD Serie
Pivoting Type of davits for lifeboats from 55-170 kn SWL.
Execution in a welded girder construction with electric winch suitable for lifeboat and rescueboat version.
|
|
