- For use with 6, 12, 24 and 32 Volt Marine Electrical Systems
- Capacity - Rated 380 AMPS Continuous, 850 AMPS Intermittent (5 Minutes On, 5 Minutes Off)
|
|
|
Panel for 2 Battery Key Switch + 1 parallel Key Switch 200A (Max 1500A)
|
|

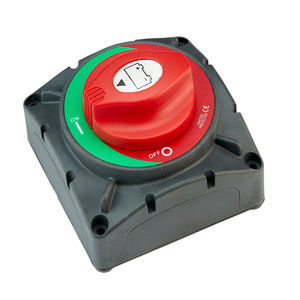

Single-pole, triple-throw switch permits four connection modes: Battery One, Battery Two, two batteries in parallel, or both off. Rated for 230 amps continuous, 345 amps momentary. For 6-volt to 32-volt systems. Includes alternator field circuit disconnect to prevent surges. Selector has positive click positions. Bakelite housing with copper washers, brass terminals, and brass nuts. Install with #10 screws.
|
|
New in 2006 the panel mount range of battery switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution with the following features:
Features:
- Fits standard BEP battery switch label range.
- Removable key
- CSK recessed for surface mount application
- Standard 2 1/16" hole cut out (Same as standard gauge hole)
- Ignition Protected
- Full access for cables with no restrictions
- Fit into Contour Connect Panel
|
|

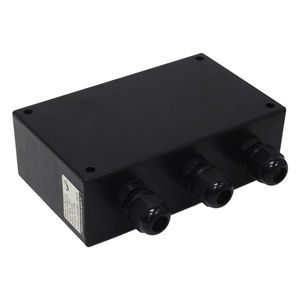

MAIN SWITCH AND MAIN FUSE UNIT WITH CHARGE RELAY
Compact main switch unit, flush mounting
Corrosion-resistant structure.
|
|
|
Copper contacts, stainless steel springs; polycarbonate body; fitted with automatic power interruption on the alternator if the battery isolator activates before turning off the engines. Specially suited for diesel motorizations, which due to large starting motors require heavy amperage; EC DIP 03299 certification made in accordance with law 94/95.
|
|
| ... products without information |
| |
- For use with 6, 12, 24 and 32 Volt Marine Electrical Systems
- Capacity - Rated 380 AMPS Continuous, 850 AMPS Intermittent (5 Minutes On, 5 Minutes Off)
|
|
|
Panel for 2 Battery Key Switch + 1 parallel Key Switch 200A (Max 1500A)
|
|
Single-pole, triple-throw switch permits four connection modes: Battery One, Battery Two, two batteries in parallel, or both off. Rated for 230 amps continuous, 345 amps momentary. For 6-volt to 32-volt systems. Includes alternator field circuit disconnect to prevent surges. Selector has positive click positions. Bakelite housing with copper washers, brass terminals, and brass nuts. Install with #10 screws.
|
|
New in 2006 the panel mount range of battery switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution with the following features:
Features:
- Fits standard BEP battery switch label range.
- Removable key
- CSK recessed for surface mount application
- Standard 2 1/16" hole cut out (Same as standard gauge hole)
- Ignition Protected
- Full access for cables with no restrictions
- Fit into Contour Connect Panel
|
|
MAIN SWITCH AND MAIN FUSE UNIT WITH CHARGE RELAY
Compact main switch unit, flush mounting
Corrosion-resistant structure.
|
|
|
Copper contacts, stainless steel springs; polycarbonate body; fitted with automatic power interruption on the alternator if the battery isolator activates before turning off the engines. Specially suited for diesel motorizations, which due to large starting motors require heavy amperage; EC DIP 03299 certification made in accordance with law 94/95.
|
|
| ... products without information |
| |
In addition to accuracy and reliability the TD 4000 comes standard with many intelligent features to measure up to four tanks, four batteries, or a combination of both.
The Smartswitch TD 4000 tank sensor is suitable for diesel, petrol, grey, freshwater and black tanks.
It is suitable for all tank construction materials including stainless steel, plastic and fibreglass.
Simple to install, the TD 4000 comes with two setup options depending on regular or odd tank shape.
Two point calibration for regular shaped tanks (low and full) and five point calibration for odd shaped tanks.
|
|
In addition to accuracy and reliability the TD 4000 comes standard with many intelligent features to measure up to four tanks, four batteries, or a combination of both.
The Smartswitch TD 4000 tank sensor is suitable for diesel, petrol, grey, freshwater and black tanks.
It is suitable for all tank construction materials including stainless steel, plastic and fibreglass.
Simple to install, the TD 4000 comes with two setup options depending on regular or odd tank shape.
Two point calibration for regular shaped tanks (low and full) and five point calibration for odd shaped tanks.
|
|
In addition to accuracy and reliability the TD 4000 comes standard with many intelligent features to measure up to four tanks, four batteries, or a combination of both.
The Smartswitch TD 4000 tank sensor is suitable for diesel, petrol, grey, freshwater and black tanks.
It is suitable for all tank construction materials including stainless steel, plastic and fibreglass.
Simple to install, the TD 4000 comes with two setup options depending on regular or odd tank shape.
Two point calibration for regular shaped tanks (low and full) and five point calibration for odd shaped tanks.
|
|
|
|
