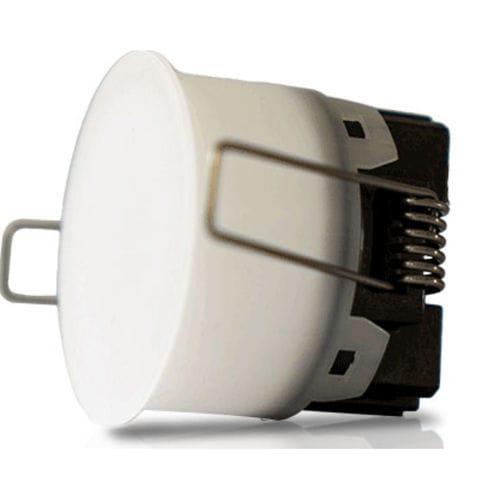

Spot de luz de iluminação externa SMARTSPOT 50 ON-OFF

de iluminação internapara barcodas luzes

Présentation
The ultimate recessed downlight generation. Embedded electronics, latest generation LED, smart.

Ghost shape
Thanks to an adaptive shape it can be installed both with an additional classic frame or totally without frames, offering the possibility of being invisible when turned off. The frame can be customizable and has to be ordered separately if required.

Homogeneous light surface
The use of a technological material for the lens delivers an incredibly homogeneous enlightened surface, while when the downlights are turned off it completely hides all the internal components offering a touch of elegance.

Powerful light
The light is emitted by 8 OSRAM LEDs arranged according to a luminous flux study aimed to obtain the best result. The standard white temperature is 3.000K but it can be customized upon request.

No galvanic currents / Corrosion resistance
The total plastic body eliminates the risk of galvanic currents generation as well as potential corrosions, making the downlight safe for marine use and keeping its appearance as new.

Fade in / Fade out
Both the turning ON and the turning OFF phases occur with a smooth fade in / fade out effect to soften the light change impact and keep eyes relaxed.

Electronics and protections
The device uses automotive certified components allowing resistance to battery voltage peaks. It features an automatic shut off system to prevent damages in case of overvoltages. Protections include polarity reverse, overheating protection, short-circuit protection, electrostatic charge protection and voltage peak protection. The electronics automatically shut down from 32Vdc up to 60Vdc to prevent damage.

Mechanical and installation
Extremely reduced encumbrance with a total height of just 44,4 mm, suitable for installations with limited space. Diameter 50 mm x thickness 44,4 mm. The product is super light weight due to the use of plastic for screen and heatsink.

Environment & compliance
Waterproof rating IP68 allowing installation in internal rooms and external corridors. EMC compliant (2014/30/EU). RoHS compliant (2011/65/EU).

Caractéristiques / spécifications techniques

• Product code: SLMXWHI01
• Denomination commerciale: SMARTSPOT 50 ON-OFF
• Luminous intensity: 400 lm (WHITE)
• Power supply: 24Vdc (suitable for 230Vac via additional PSU)
• Output Power: 4,8 W
• Absorption: Max 0,20 A @ 24Vdc
• Light colour: White 3.000 K (OSRAM LED) – other white temperatures available on request
• Driver type: internal
• Dimmable: Yes, with true deep dimming mode (0–100%)
• Fade in / Fade out effect: Yes
• Protections: polarity reverse, overheating, short circuits, electrostatic charges, voltage peaks
• Resistance to voltage peaks: 60 Vdc (device automatically shuts down from 32Vdc up to 60Vdc to prevent damages)
• Lens material: technological plastic
• Heatsink material: dissipative plastic
• Body material: total plastic body (prevents galvanic currents/corrosion)
• Waterproof: IP68
• Projector dimensions: Diameter 50 mm x thickness 44,4 mm
• Operating modes: ON/OFF and dimming
• System typology: Standard
• Compliances: RoHS 2011/65/EU; Electromagnetic compatibility 2014/30/EU
