Ship door QAWT series
waterproofstainless steel

ship door
ship door
Add to favorites
Compare this product


Application domain
for ships
stainless steel

680 mm, 780 mm (27 in)


1,480 mm, 1,580 mm (58 in)

Hinge number

2 unit

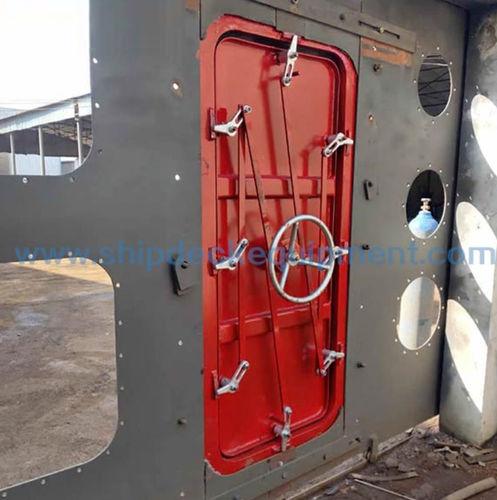

Both sides opening quick action high pressure watertight door is normally used for engine room steering gear room and other watertight compartments. It is also compliance with fire proof requirements, The withstanding water pressure is 0.1Mpa.And fire grade can be A60. It can be opened from both side, so it is applicable to be used on the escape route. Main Technical Specifications: Standard: CB/T 38572; Material: Mild Steel, Stainless Steel, Test: Hydraulic Pressure Test, Dimension: Customized, As client’s drawing, As Standard Application Type: Watertight, Leaf Type: Single Leaf, Application Location: Accommodation, Cargo Hold, Bulkhead, Boundary Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc. Power resource: Manual, Closing Device: Anti-Piracy Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.
