Cutter-suction dredge CHUB 7200/2400

pollution control boatcatamaransteel

Overview

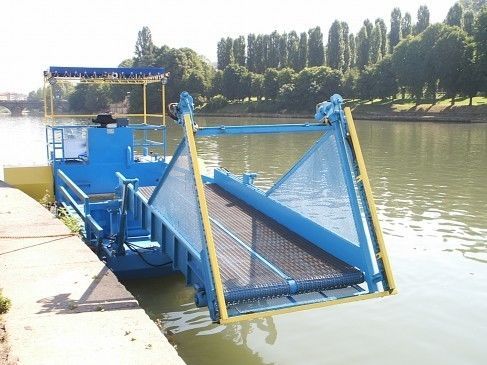

The CHUB 7200/2400 is a vessel designed to cut and harvest seaweed on inland waters (lakes, rivers, canals) and can be adapted for coastal or offshore use. Mowers mounted along the side hulls and on the lower longitudinal of the recovery belt enable cutting at variable depths and heights.

Cutting specifications
Cutting width: 1.4 m.
Cutting depth: 1.5 m.

Recovery and propulsion
The recovery belt transfers the harvested material onto a large storage deck.
Storage bridge volume: 8 to 12 m3.
The operator's seat is positioned laterally on the storage deck to ensure visibility during cutting and continuous monitoring of recovered quantities.
The craft is propelled by two shrouded blades and a 30 HP, 4-cylinder, water-cooled engine in a closed circuit with radiator.

Additional information (as listed on the page)
LENGTH cm: 72
WIDTH cm: 24
CUT WIDTH cm: 14
CUT DEPTH cm: 15
STORAGE CAPACITY: 8 to 12 m3
MATERIAL OF REALIZATION: steel or aluminum; double covered propeller
PROPULSION/ENGINE: POWER 30 HP, CYLINDERS NO. 4, WATER COOLING, CIRCUIT closed, with radiator

Technical specifications

• Length: 72 cm
• Width: 24 cm
• Cut width: 14 cm
• Cut depth: 15 cm
• Cutting width: 1.4 m
• Cutting depth: 1.5 m
• Storage capacity / Storage bridge volume: 8 to 12 m3
• Material: steel or aluminum; double covered propeller
• Propulsion / Engine: 30 HP, 4 cylinders, water cooling, closed circuit with radiator
