Boat switch panel SP3216P

rockerLED

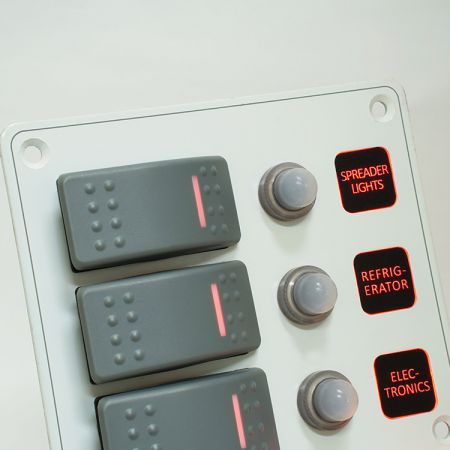

6P Water-resistant Switch Panel with Backlight Modules (Dark Gray) Coming with the IP66 C-7 sealed rocker Switches, these switch panels can withstand even severer weather conditions than the C-6 Water-resistant Switch Panel. SP32xx series are the only aluminum switch panels in the market with backlight modules for labels. - New modern and compact panel design (15% smaller than SP30xx series) - Backlight modules for labels, allowing easy operation in darkness - IP66–protect against strong water jets - Push-reset circuit breakers with rubber boots - Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V) - Watertight mounting gasket included - Square shaped label stickers (30pcs) allow vertical or horizontal installation - Faceplate | 0.1"(2.54mm) Coated Aluminum Alloy - Circuit Protection | Circuit Breakers - Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage) - Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above) - Product Dimensions (W x H) | 114 x 191mm - Mounting Depth | 75mm - Panel Cut-out (W x L) | 96 x 166mm
