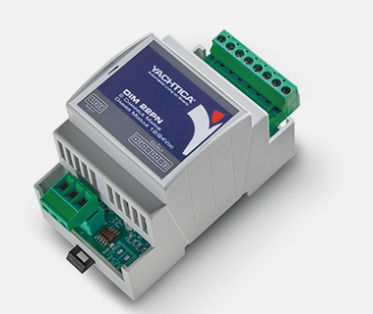

LED light light dimmer DIM 22PN

for yachts

The DIM 22PN module is equipped with an integrated microcontroller used to control and dimm 2 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 6A loads. 2 Channels Marine Dimmer Module 12/24 VDC 2 dimmer outputs with memory 12/24VDC (PWM 200Hz) 2 dry contact inputs Electronic protection against overload and short circuit Monitoring LEDs on the front panel DIN rail installation (3M) Detachable terminal blocks Conformal coating treatment
